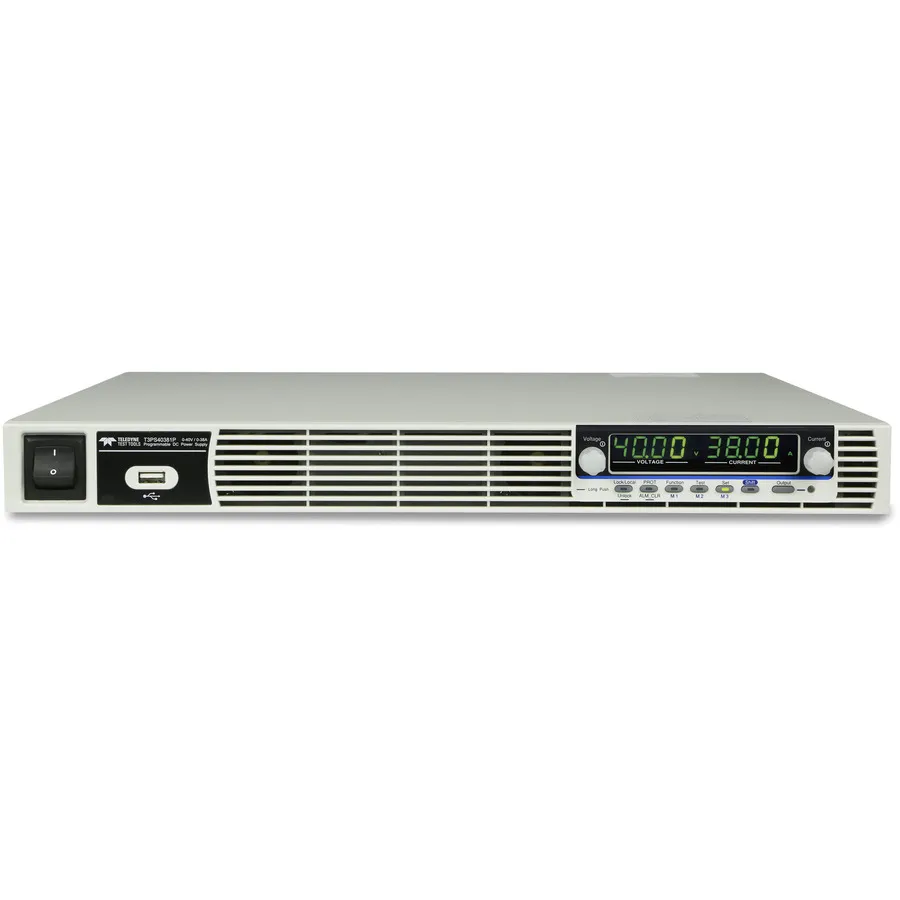

Teledyne LeCroy T3PS062001P 1U Rack Mount DC Power Supply
Request a quote
Teledyne LeCroy T3PS062001P is a 1U rack-mount DC power supply delivering 1200W at 6V/200A for high-current component testing exceeding 100A.
Product details
| Model | T3PS062001P |
| Manufacturer | Teledyne LeCroy |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy T3PS062001P is a single-output DC programmable power supply delivering 1200W to 1520W. This 1U rack-mount unit is designed for electronic component manufacturers performing high-current withstand testing on components such as micro-resistors, relays, and shunt resistors at currents exceeding 100A. The compact form factor provides flexibility for system integration without compromising voltage range capabilities.
Key Features
- Dual measurement display for voltage and current monitoring
- Switched-mode high-efficiency design
- Constant voltage (CV) and constant current (CC) operation modes
- Remote sensing to compensate for voltage drop in load leads
- 1U height, 19-inch rack mount form factor
Applications
- High-current component withstand testing (100A and above)
- Micro-resistor, relay, and shunt resistor validation
- System integration for test and measurement setups
Specifications
| Voltage Range Selector | 1-19.9 |
| Output Voltage | 6 V |
| Current Range Selector | 200-499 |
| Output Current | 200 A |
| Power Range Selector | 1,000-2,499 |
| Power Rating | 1.2 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 85-240 VAC |
| Series | T3PS Series |
| Display | Digital |
| Interface | USB,LAN,RS-232,RS-485,Analog |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 1U |
| Special Features | OVP, OCP, OHP, UVL, AC Fail, FAN Fail |
