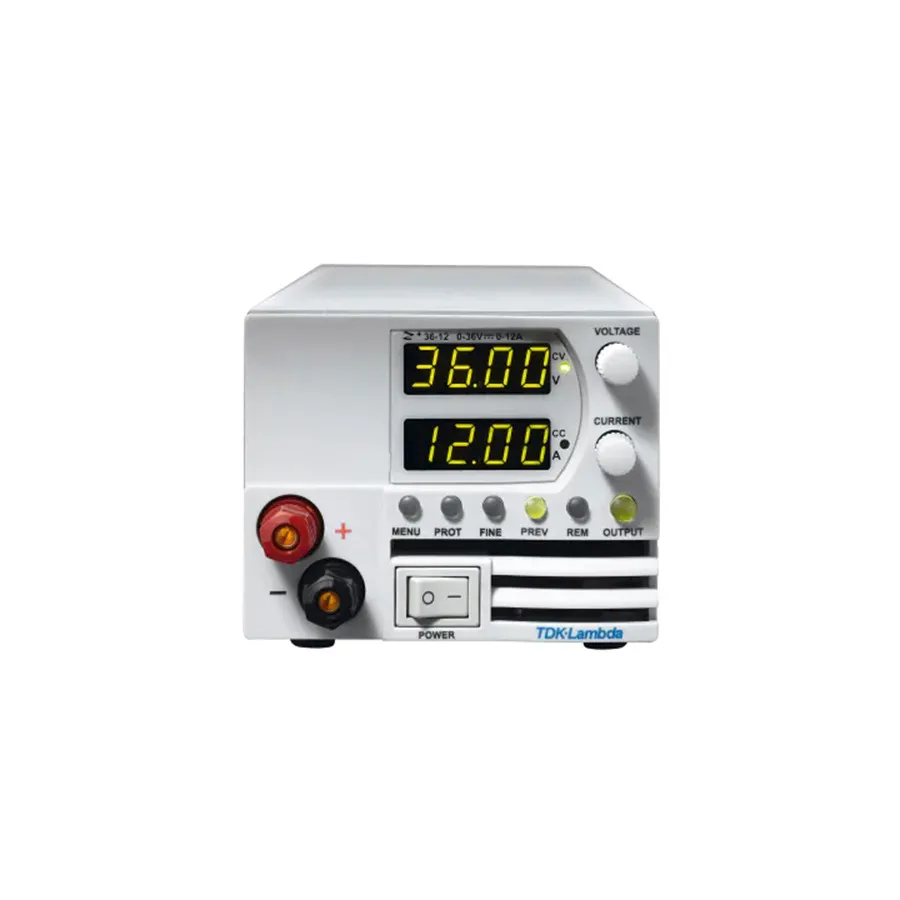

TDK-Lambda Z60-14-L-U DC Power Supply
Request a quote
TDK-Lambda Z60-14-L-U is a 60V/14A programmable DC power supply with USB, RS-232, RS-485 interfaces, front-panel binding post connectors, CC/CV modes, and 2U rack design.
Product details
| Model | Z60-14-L-U |
| Manufacturer | TDK-Lambda |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The TDK-Lambda Z60-14-L-U is a single-output 60V, 14A programmable DC power supply designed for laboratory and industrial applications requiring precise voltage and current control. Built with multiple communication interfaces including USB, RS-232, and RS-485, plus convenient front-panel binding post connectors for direct power connections, it supports both direct instrument control and easy manual operation.
Key Features
- Output: 60V at 14A (840W)
- Constant Current (CC) and Constant Voltage (CV) operating modes
- Built-in USB, RS-232, RS-485 serial interfaces
- Front-panel binding post connectors (4mm socket, up to 60V/24A)
- Programmable output signal pins for custom automation
- Bench or 19-inch rack mount configuration
- 2U high form factor
- Selectable input voltage: 115V or 230VAC
- Input range: 85–265VAC
- 5-year manufacturer warranty
Applications
- Laboratory power source for research and component testing
- Automated Test Equipment (ATE) systems
- Manual bench testing with convenient front-panel connectors
- Circuit characterization and prototype development
- Industrial equipment validation and burn-in testing
Specifications
| Voltage Range Selector | 50-99.9 |
| Output Voltage | 60 V |
| Current Range Selector | 10-19.9 |
| Output Current | 14 A |
| Power Range Selector | 500-999 |
| Power Rating | 840 W |
| Mounting Type | Bench Top |
| Input Voltage | 85-265 VAC |
| Series | Z+ Series |
| Display | Digital |
| Interface | USB,RS-232,RS-485 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 2U |
| Special Features | Front Panel Binding Posts |
