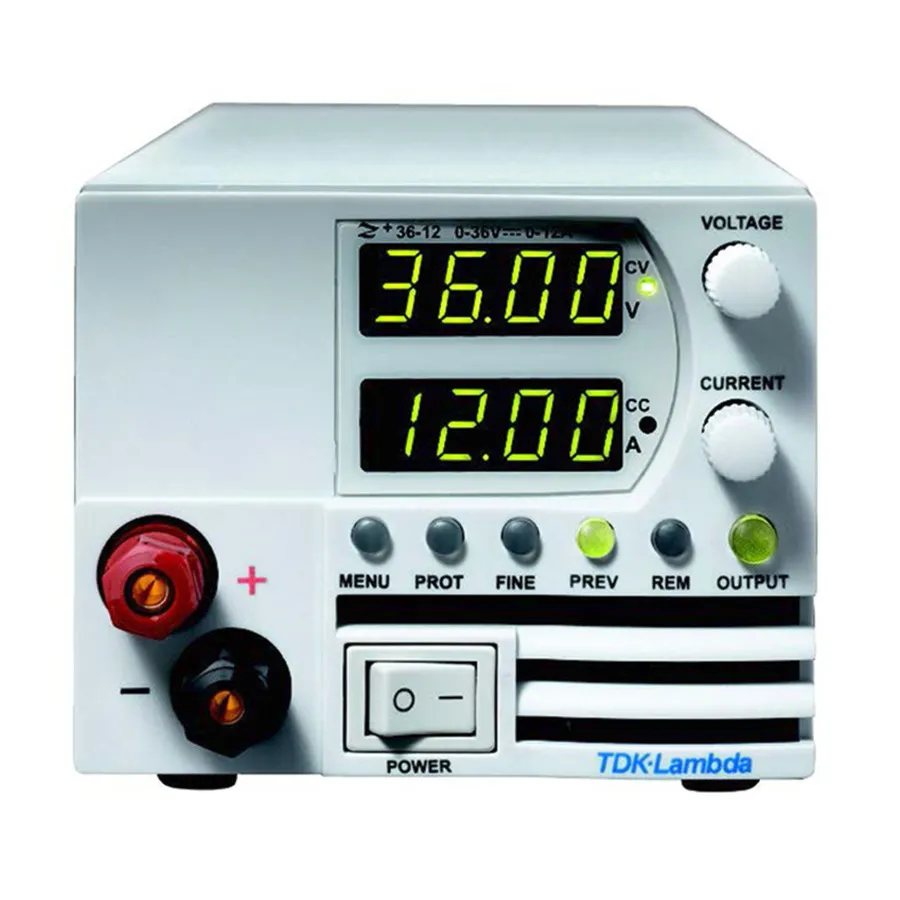

TDK-Lambda Z36-12-L-U DC Power Supply
Request a quote
TDK-Lambda Z36-12-L-U delivers 36V, 12A (432W) with front panel binding post terminals, active power factor correction, and bench/rack configurations.
Product details
| Model | Z36-12-L-U |
| Manufacturer | TDK-Lambda |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The TDK-Lambda Z36-12-L-U is a programmable single-output DC power supply from the Z+ series, delivering 36V and 12A (432W). It features front panel binding post output terminals for convenient benchtop operation and is available in both bench and rack-mount configurations. The Z+ series is designed for high reliability and flexibility, supporting constant current and constant voltage operation modes with optional programmable output sequencing.
Key Features
- 36V, 12A output (432W)
- Front panel binding post output terminals (4mm sockets)
- Wide input voltage range 85-265VAC, selectable 115-230VAC
- Active power factor correction (0.99 typical)
- Constant current and constant voltage operation modes
- Built-in USB, RS-232, and RS-485 communication interfaces
- 2U high enclosure for rack or bench mounting
- Parallel operation capability with active current sharing (up to 6 units)
- Arbitrary output function generation and sequencing
- 5-year warranty
- UL listed (USA/Canada) and CE marked
Applications
- Benchtop testing and product development
- Automated test systems and manufacturing
- Laboratory power supply requirements
- Equipment design and characterization
- Multi-unit systems with current sharing
Optional Interfaces
- GPIB (IEEE-488) for instrument control
- LAN (Ethernet) for network control
- Isolated analog programming (voltage or current)
Specifications
| Voltage Range Selector | 30-49.9 |
| Output Voltage | 36 V |
| Current Range Selector | 10-19.9 |
| Output Current | 12 A |
| Power Range Selector | 200-499 |
| Power Rating | 432 W |
| Mounting Type | Bench Top |
| Input Voltage | 85-265 VAC |
| Series | Z+ Series |
| Display | Digital |
| Interface | USB,RS-232,RS-485 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 2U |
| Special Features | Front Panel Binding Posts |
