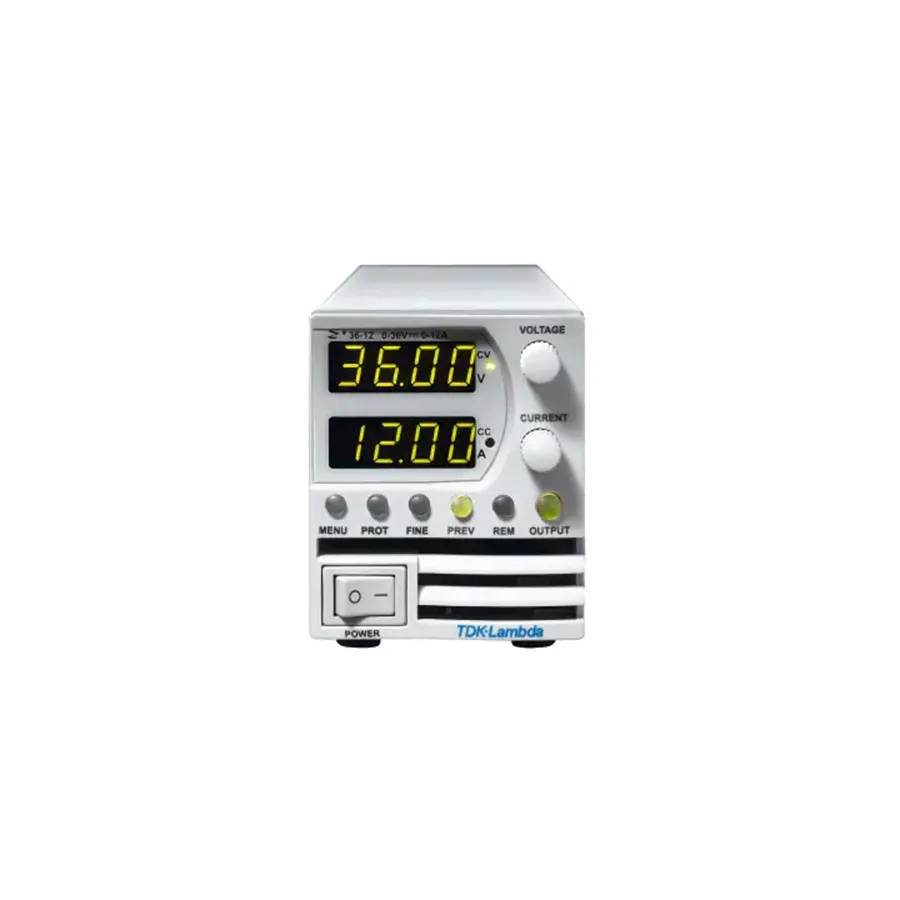

TDK-Lambda Z320-2.5-LAN-U DC Power Supply
Request a quote
TDK-Lambda Z320-2.5-LAN-U is an 800W programmable DC power supply with 320V/2.5A output, LAN interface for network control, and USB/RS-232/RS-485 connectivity.
Product details
| Model | Z320-2.5-LAN-U |
| Manufacturer | TDK-Lambda |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The TDK-Lambda Z320-2.5-LAN-U is a high-power programmable DC power supply with 800W output capability. Delivering 320V at up to 2.5A, it includes a built-in LAN interface for network-based remote control and monitoring. Multiple communication options—USB, RS-232, RS-485, and LAN—provide flexible system integration in laboratory, industrial, and test environments.
Key Features
- Output: 320V DC at 2.5A (800W maximum)
- Built-in LAN interface for network control and monitoring
- USB, RS-232, and RS-485 interfaces for alternative connectivity
- Constant Current or Constant Voltage operating modes
- User-programmable output signal pins
- 2U high form factor for rack or bench mounting
- Selectable 115-230VAC input with wide input voltage range (85-265VAC)
- Active Power Factor Correction (0.99 typical)
- 5-year warranty
Applications
- Networked laboratory and research facilities
- Remote industrial power management systems
- Multi-system rack-mount test environments
- Automated manufacturing and quality assurance
Specifications
| Voltage Range Selector | 300-499 |
| Output Voltage | 320 V |
| Current Range Selector | 2.5-4.9 |
| Output Current | 2.5 A |
| Power Range Selector | 500-999 |
| Power Rating | 800 W |
| Mounting Type | Bench Top |
| Input Voltage | 85-265 VAC |
| Series | Z+ Series |
| Display | Digital |
| Interface | USB,LAN,RS-232,RS-485 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 2U |
| Special Features | Constant Current, Constant Voltage, Master/Slave Modes |
