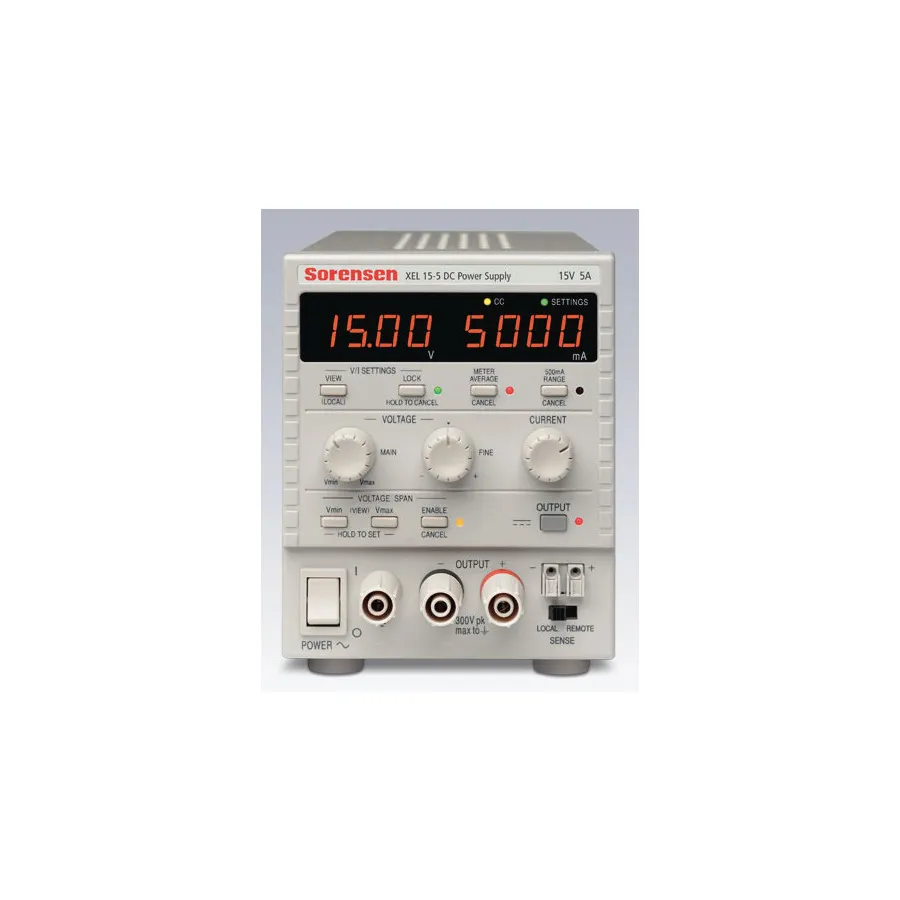

Sorensen XEL15-5PG DC Power Supply
Request a quote
Sorensen XEL15-5PG is a benchtop DC supply with 0-15V/5A output, linear regulation, and GPIB/Ethernet/USB/RS-232 interfaces for lab and ATE applications.
Product details
| Model | XEL15-5PG |
| Manufacturer | Sorensen |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Sorensen XEL15-5PG is a compact benchtop DC power supply delivering 0-15V at up to 5A (75W) with linear regulation. It combines the simplicity of analog controls with the flexibility of advanced digital features and comprehensive programming interfaces. Ideal for engineering labs, prototype development, and automated test equipment (ATE) integration.
Key Features
- Single output: 0-15V, 0-5A (75W)
- Linear regulation with simple analog controls
- V-Span: User-defined minimum and maximum voltage values for precise control and device protection
- S-Lock: Set and lock the output voltage to a regulated fixed value
- Output Enable: Configure desired voltage and current levels before powering the output
- Programming interfaces: GPIB, RS-232, USB, and LAN (LXI Class C) for comprehensive system and ATE integration
- Small benchtop footprint (4.2 x 11.3 inches)
- Three-year warranty
Applications
- Engineering lab and bench testing
- Prototype development and device validation
- Automated test equipment (ATE) system integration
- Electronic device characterization
Specifications
| Voltage Range Selector | 1-19.9 |
| Output Voltage | 15 V |
| Current Range Selector | 5-9.9 |
| Output Current | 5 A |
| Power Range Selector | 1-199 |
| Power Rating | 75 W |
| Mounting Type | Bench Top |
| Input Voltage | 115 VAC |
| Series | XEL Series |
| Display | Digital |
| Interface | GPIB,USB,LAN,RS-232 |
| Number of Outputs | Single Output |
| Programmable | No |
| Special Features | Linear, S-Lock, V-Span |
