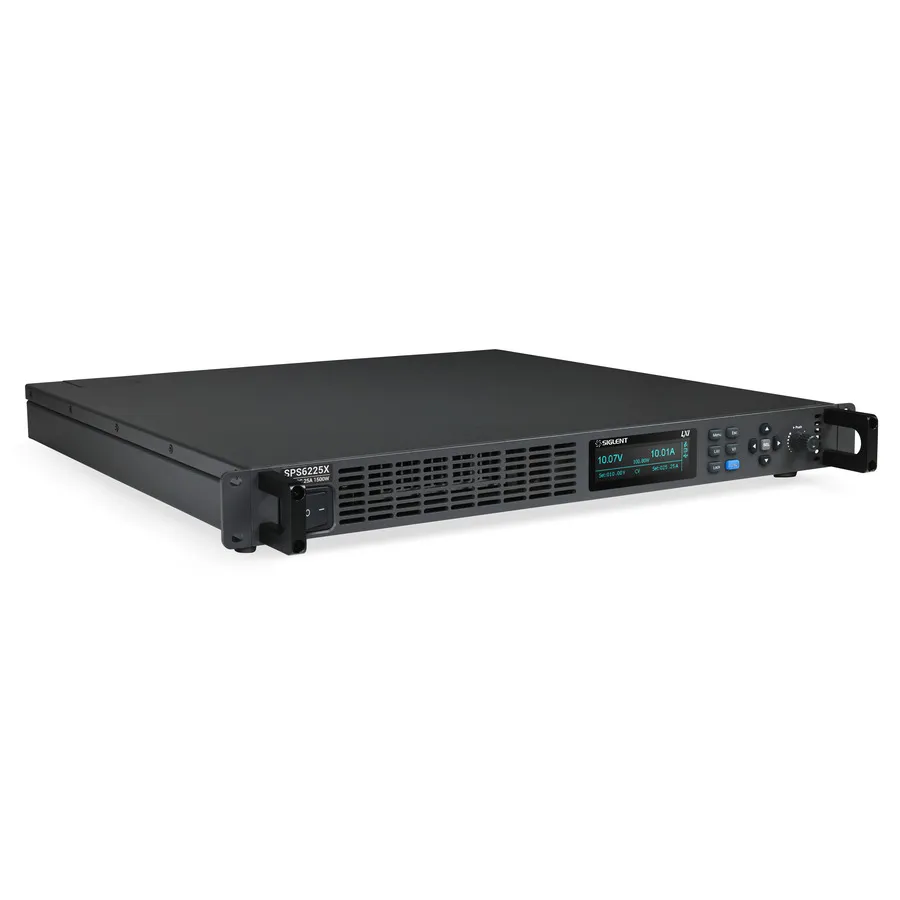

Siglent SPS6225X Programmable DC Power Supply
Request a quote
Siglent SPS6225X is a programmable switching DC power supply with 200V/25A output, 1500W power, and support for parallel expansion.
Product details
| Model | SPS6225X |
| Manufacturer | Siglent |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Siglent SPS6225X is a programmable switching DC power supply designed for laboratory, industrial, and test applications. This single-channel unit delivers 200V at 25A with a maximum power output of 1500W and supports parallel connection of up to five identical units to expand power capacity.
Key Features
- Programmable switching DC power supply with single channel
- Rated output: 200V, 25A, 1500W maximum power
- Load transient recovery time less than 2.5 ms for 50-100% load changes
- Adjustable voltage and current slew rates for controlled output transitions
- High resolution: 10 mV and 10 mA setting and readback
- Remote Sense function to reduce lead resistance error
- Parallel expansion: connect up to five SPS6000X units for increased power
Included Accessories
- USB Cable
- Quick Start Guide
- Calibration Certificate
- Power Cord
- Output Guard
Specifications
| Voltage Range Selector | 200-299 |
| Output Voltage | 200 V |
| Current Range Selector | 20-29.9 |
| Output Current | 25 A |
| Power Range Selector | 1,000-2,499 |
| Power Rating | 1.5 kW |
| Mounting Type | Rack Mount |
| Series | SPS6000X Series |
| Display Type | 3.12 OLED |
| Includes | USB Cable, Quick Start, Calibration Certificate, Power Cord, Output Guard |
| Interface | USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 1U |
| Special Features | Constant Current, Constant Voltage, Switching |
