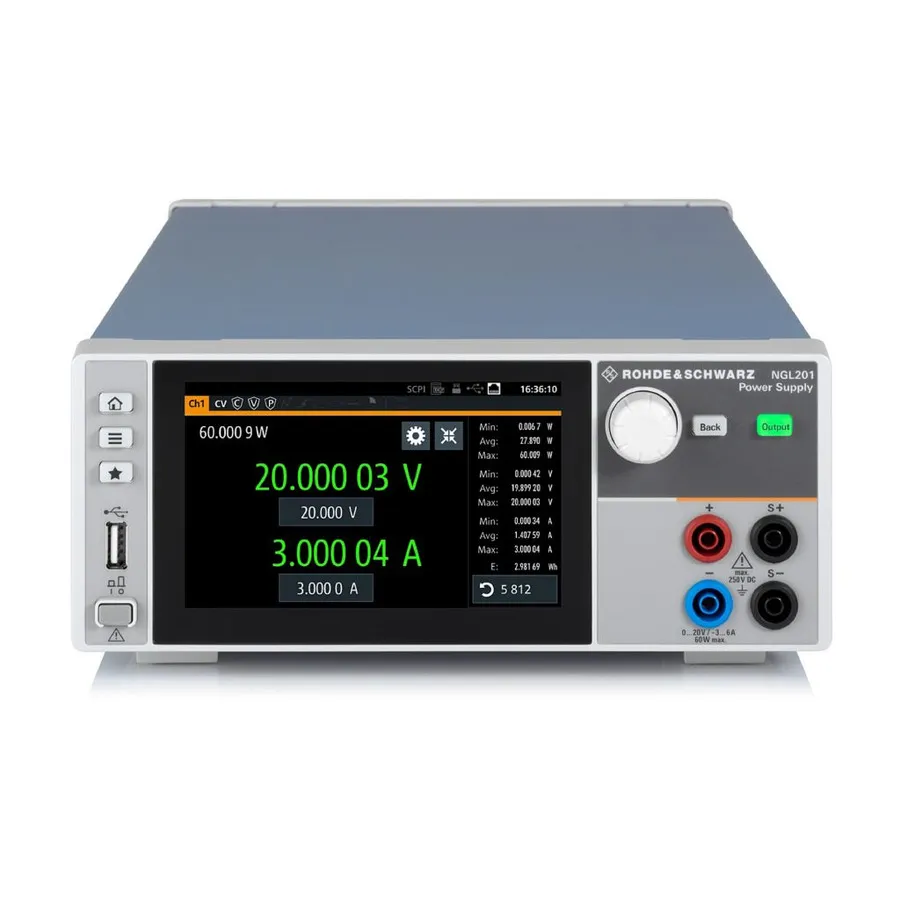

Rohde & Schwarz NGL201 Single-Channel DC Power Supply
Request a quote
Rohde & Schwarz NGL201 is a single-channel DC power supply with 60W maximum power, galvanically isolated output, <30µs load recovery, and 6½-digit measurement resolution.
Product details
| Model | NGL201 |
| Manufacturer | Rohde & Schwarz |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz NGL201 is a single-channel DC power supply with 60W maximum output power. It features a galvanically isolated, floating output channel protected against overload and short circuits. With fast load recovery time of less than 30 microseconds and 6½-digit measurement resolution, the NGL201 is ideal for IoT device testing, sensitive circuit characterization, and applications requiring stable, low-noise power.
Key Features
- Single output channel, 0V to 20V
- Output current: up to 6A (≤6V) or 3A (>6V)
- Maximum output power: 60W
- Load recovery time: <30 µs
- Measurement resolution: up to 6½ digits for voltage, current, and power
- Two-quadrant operation: source and sink functionality
- Constant voltage, constant current, and constant resistance modes
- Built-in protection: overload and short-circuit protection
- Interfaces: USB and LAN (Ethernet)
- QuickArb function for arbitrary waveform generation
- TFT display
- Three-year warranty
Applications
- Testing IoT devices and battery-operated equipment
- Power amplifier and MMIC design verification
- Sensitive analog circuit characterization
- Laboratory testing environments
Specifications
| Mounting Type | Bench Top |
| Series | NGL Series |
| Alternate Product Number | 3638.3376.02 |
| Number of Outputs | Single Output |
