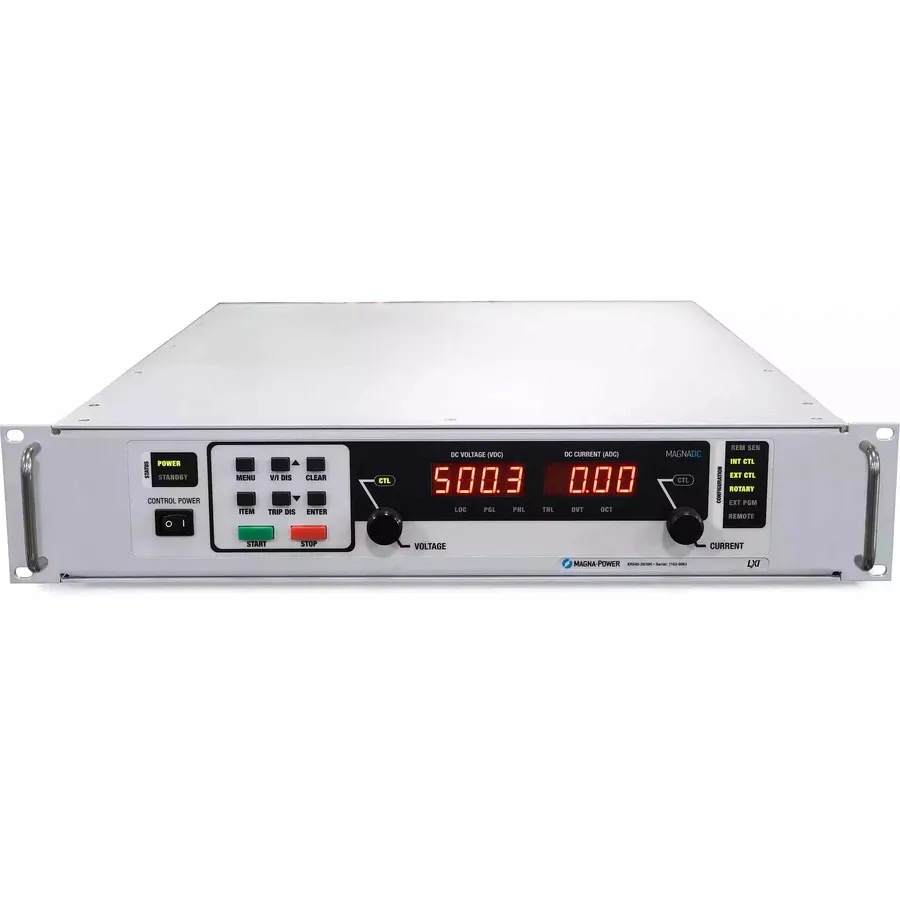

Magna Power XR2000-1/380 DC Power Supply

Magna Power · Model: XR2000-1/380 Made to order
Magna Power XR2000-1/380 DC Power Supply
Request a quote

Magna Power XR2000-1/380 is a 2kW programmable DC power supply with 2000V output, 1A current, and three-phase 380VAC input for international power standards.

Model XR2000-1/380
Manufacturer Magna Power
Category Single Output DC Supplies
Availability Made to order

Overview

The Magna Power XR2000-1/380 is a 2kW programmable DC power supply configured for three-phase 380VAC input, suitable for international and industrial power infrastructure. With a maximum output of 2000V and 1A current capacity, this 2U rack-mount unit features a voltage range from 5V to 10,000V across the XR Series product line and utilizes current-fed power processing technology for efficient power conversion.

Key Features

  • 2kW output power: 2000V DC maximum, 1A maximum current
  • Three-phase 380VAC input for international power systems
  • SCPI Remote Programming API for remote control and automation
  • High-accuracy built-in measurement reduces need for external meters
  • Multiple connectivity options: RS232, GPIB, Ethernet
  • Master-Slave operation mode for parallel configuration
  • Remote voltage sensing and 37-pin external user I/O
  • Programmable output protection and configurable limits
  • Extensive diagnostic functions for safety monitoring
  • Designed and manufactured in the USA

Applications

  • Industrial testing and verification
  • Research and development laboratories
  • Semiconductor testing and characterization
  • Accelerated life testing
  • Power conversion and efficiency testing
Voltage Range Selector 2000-10,000
Output Voltage 2 kV
Current Range Selector 0-2.49
Output Current 1 A
Power Range Selector 1,000-2,499
Power Rating 2 kW
Mounting Type Rack Mount
Input Voltage 380 VAC
Series XR Series
Display Digital
Interface RS-232
Number of Outputs Single Output
Programmable Yes
Rack Space 2U
Special Features Master/Slave Modes, Remote Sense
