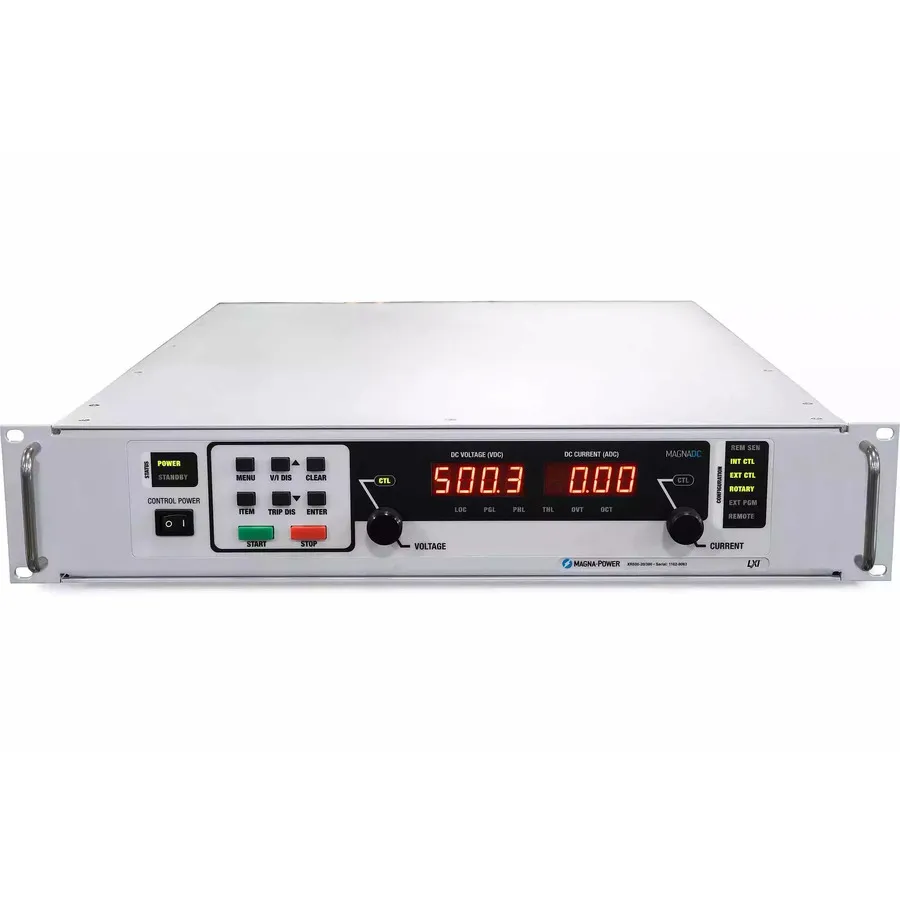

Magna Power XR20-300/480 DC Power Supply

Overview

The Magna Power XR20-300/480 is a programmable DC power supply delivering 20 V at 300 A (6 kW output) in a 2U rack-mount format. The XR Series is engineered with exceptional reliability, featuring the broadest voltage range in Magna Power's product line from 5 Vdc to 10,000 Vdc. All models utilize current-fed power processing technology for optimal efficiency and robust power conversion, with precision programming and monitoring that eliminate the need for external power meters.

Key Features

• 20 V output voltage at 300 A current (6 kW power)
• 2U rack-mount form factor
• Broadest voltage range in Magna Power's lineup (5 to 10,000 Vdc)
• SCPI Remote Programming API
• High Accuracy Measurements
• Master-Slave Functionality for system scaling
• Remote Sensing for accurate voltage regulation
• 37-Pin External User I/O
• RS232 Interface, Ethernet and GPIB available
• 0-10V External Analog Inputs
• Programmable Protection Limits
• Fast Transient Response
• NI LabVIEW and IVI Driver support
• Interlock Shutdown Input
• Designed and Manufactured in the USA

Available Options

• High Slew Rate Output (+HS) for rapid voltage transitions
• IEEE-488 GPIB Communications (+GPIB)
• LXI TCP/IP Ethernet Communications (+LXI)
• Ruggedized (+RUG) for enhanced mechanical protection

Applications

• Power supply testing and validation
• Automated test equipment (ATE) systems
• Industrial power conversion and control
• Research and laboratory testing
