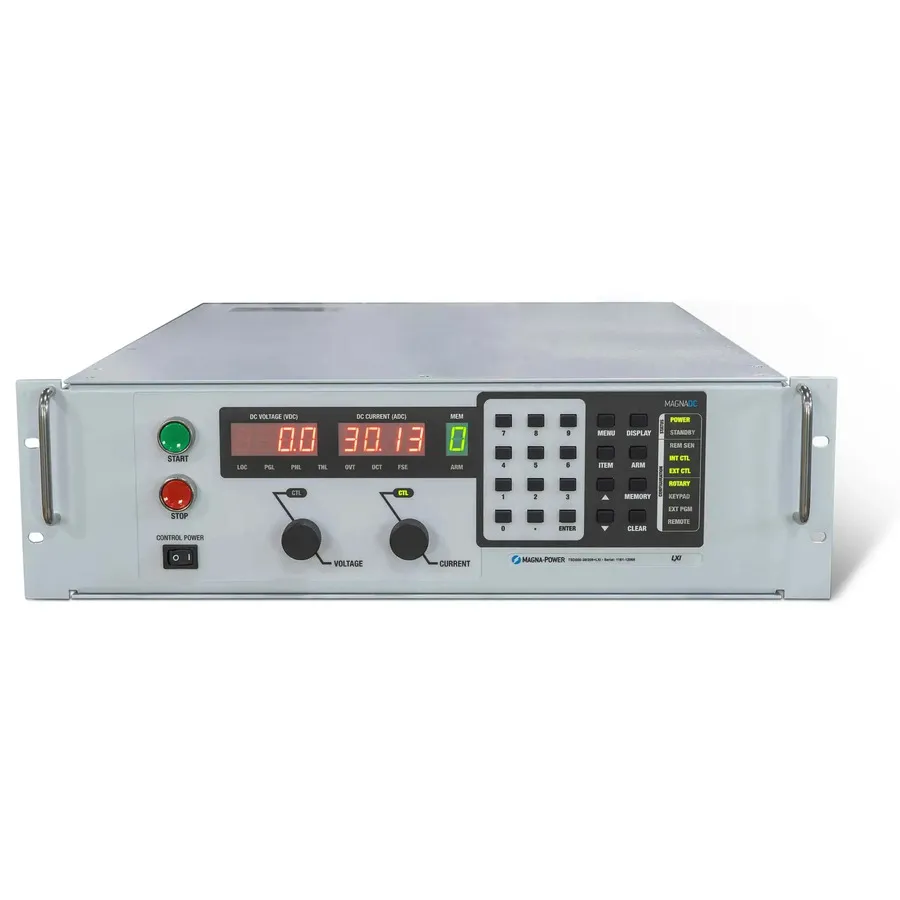

Magna Power TSD5000-1/208+HS+LXI DC Power Supply

Overview

The Magna Power TSD5000-1/208+HS+LXI is a single output DC power supply from the TS Series, engineered for applications requiring high voltage in a compact, high-density package. This model delivers 5000VDC at 1ADC with 208V single-phase AC input, providing 5kW of output power in a 3U rackmount chassis. The integrated LXI interface enables seamless integration into automated test systems and networked laboratory environments.

The TS Series accommodates voltages ranging from 5Vdc to 6000Vdc (floating) and currents from 1.2Adc to 8000Adc, with models ranging from 5kW to 100kW in chassis sizes from 3U to 16U. This comprehensive line includes specialized low-voltage, high-current variants for cost-sensitive applications.

Key Features

• SCPI remote programming API for flexible control
• LXI interface standard for automated test environments
• Master-slave functionality for parallel operation and higher power
• Remote sensing for accurate voltage delivery at the load
• Isolated 37-pin external I/O connector
• High accuracy voltage and current measurements
• 0-10V external analog control inputs
• Programmable overvoltage and overcurrent protection
• Fast transient response
• IVI driver and NI LabVIEW compatibility
• Interlock shutdown input for safety integration
• Designed and manufactured in the USA

Applications

• High-voltage component testing and characterization
• Aerospace and defense equipment validation
• Laboratory and research applications
• Automated test equipment integration
• Semiconductor and electronic device analysis
