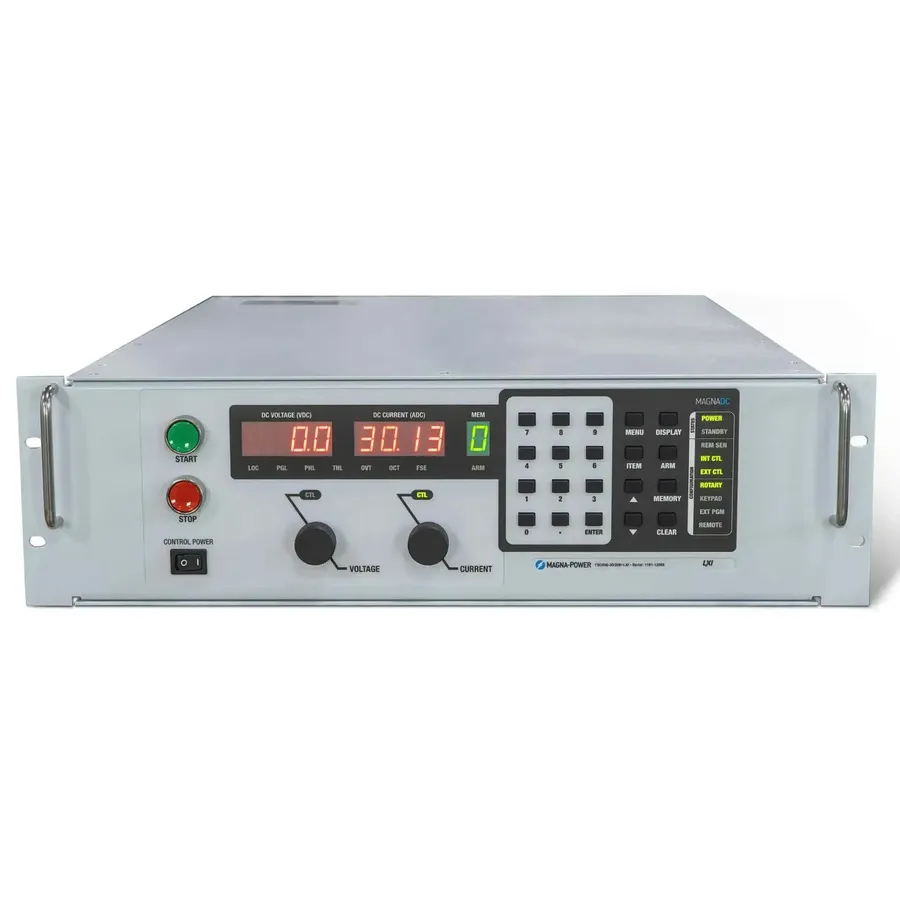

Magna Power TSD5-900/480+HS+LXI DC Power Supply
Request a quote
Magna Power TSD5-900/480+HS+LXI delivers 5V at 900A (5kW) with 480V AC input, enhanced high-speed transient response, LXI networking, and remote SCPI control.
Product details
| Model | TSD5-900/480+HS+LXI |
| Manufacturer | Magna Power |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Magna Power TSD5-900/480+HS+LXI is an enhanced variant of the TS Series TSD5-900/480 DC power supply, incorporating high-speed transient response (HS) and LXI (LAN eXtensions for Instrumentation) networking capabilities. This 5V / 900A (5 kW) model delivers exceptional performance for demanding test environments, industrial automation, and networked instrumentation systems. The addition of LXI provides standard Ethernet-based remote control, enabling integration into complex test systems and data acquisition networks.
Key Features
- Output Rating: 5V / 900A (5 kW)
- Input: 480V AC, 3-phase
- Enhanced High-Speed Transient Response (HS)
- LXI Ethernet Interface for Networked Control
- 3U Rack-Mount Chassis
- SCPI Remote Programming API
- Master-Slave Configuration Support
- Remote Sensing for Voltage Regulation
- High Accuracy Measurements
- 37-Pin External User I/O Connector
- RS232 and Ethernet Interface
- Optional GPIB Support
- 0-10V External Analog Control Inputs
- Programmable Output Protection Limits
- NI LabVIEW and IVI Driver Support
- Manufactured in the USA
Applications
- High-Speed Transient Testing and Validation
- Automated Test Equipment (ATE) Systems
- Multi-Unit Rack Integration
- Battery and Energy Storage Testing
- Accelerated Component Life Testing
- Networked Research and Development Laboratories
Specifications
| Voltage Range Selector | 1-19.9 |
| Output Voltage | 5 V |
| Current Range Selector | 500-1,499 |
| Output Current | 900 A |
| Power Range Selector | 5,000-9,999 |
| Power Rating | 5 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 480 VAC |
| Series | TS Series |
| Display | Digital |
| Interface | LXI,RS-232 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 3U |
| Special Features | High Slew Rate, Master/Slave Modes, Remote Sense |
