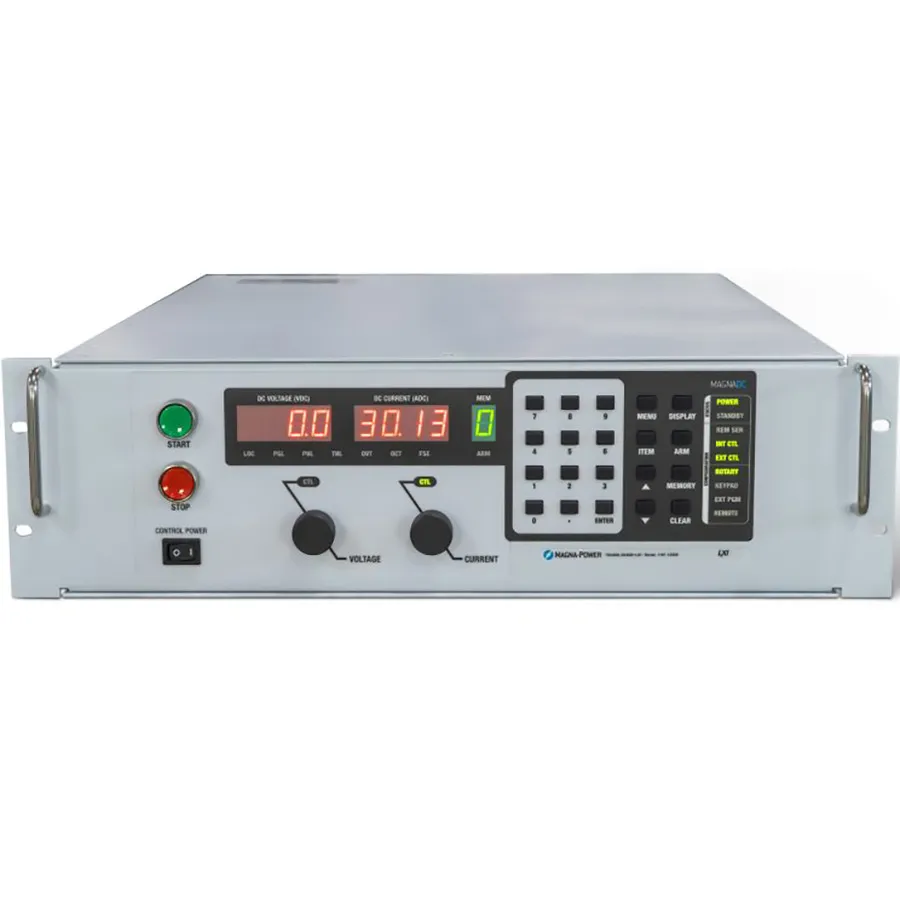

Magna Power TSD300-16/208+LXI DC Power Supply
Request a quote
Magna Power TSD300-16/208+LXI is a 3U programmable DC supply with 300V/16A output, 5kW power, and LXI Ethernet communications for remote SCPI control.
Product details
| Model | TSD300-16/208+LXI |
| Manufacturer | Magna Power |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Magna Power TSD300-16/208+LXI is a 3U rack-mount programmable DC power supply for test, measurement, and industrial applications requiring precision voltage and current control. This model delivers 300V and 16A with 5kW output power and includes LXI Ethernet communications for remote control via SCPI protocols.
Key Features
- SCPI Remote Programming API for complete instrument control
- LXI TCP/IP Ethernet Communications for network-based operation
- High Accuracy Measurements with programmable protection limits
- Master-Slave Functionality for parallel operation and power scaling
- Remote Sensing to compensate for line losses
- 37-Pin External User I/O for custom integration
- RS232 Serial Interface with optional GPIB and Ethernet
- 0-10V External Analog Inputs for external control signals
- Fast Transient Response for dynamic load changes
- Designed and manufactured in the USA
Applications
- Electronic component testing and verification
- Research and development laboratory testing
- Automated test equipment (ATE) systems
- Burn-in and reliability testing
- Industrial process control
Specifications
| Voltage Range Selector | 300-499 |
| Output Voltage | 300 V |
| Current Range Selector | 10-19.9 |
| Output Current | 16 A |
| Power Range Selector | 5,000-9,999 |
| Power Rating | 5 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 208 VAC |
| Series | TS Series |
