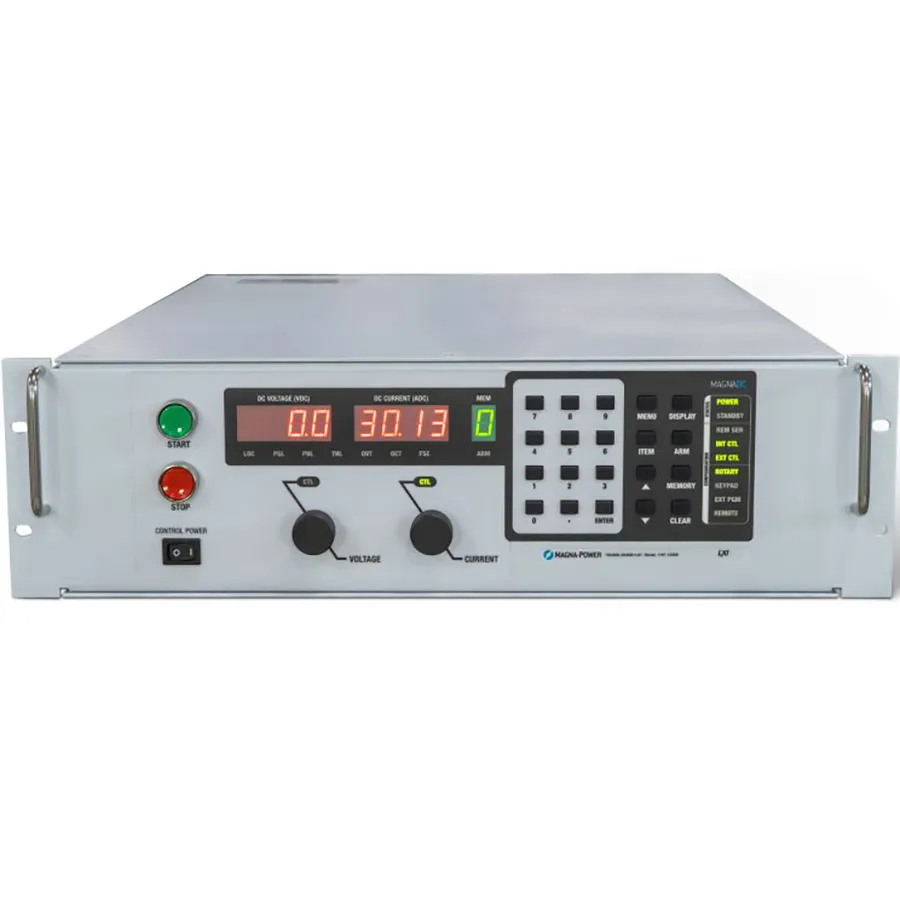

Magna Power TSD180-81/208+BD+HS DC Power Supply

Overview

The Magna Power TSD180-81/208+BD+HS is a programmable DC power supply from the TS Series, featuring High Slew Rate Output (+HS) and Blocking Diode (+BD) options. This 3U chassis model delivers 180 Vdc at 81 A with 15 kW output power. The TS Series offers 275 models spanning voltage ranges from 5 Vdc to 6000 Vdc and current levels from 0.8 Adc to 8000 Adc, all maintaining exceptional power density for rack-mount applications.

Key Features

• SCPI Remote Programming API for flexible system integration
• High Accuracy Measurements
• Master-Slave Functionality for parallel operation
• Remote Sensing to compensate for voltage drops
• 37-Pin External User I/O
• RS232 Interface with optional Ethernet and GPIB
• 0-10V External Analog Inputs
• Programmable Protection Limits
• Fast Transient Response
• Remote Interface Software and NI LabVIEW drivers
• Interlock Shutdown Input
• Designed and Manufactured in the USA

Available Options

• Blocking Diode (+BD): Internally heat-sunk protection diode on positive output terminal protecting against reverse voltage up to 1200 Vdc
• High Isolation Output (+ISO): Enables floating output voltage beyond the power supply isolation rating for specialized applications
• High Slew Rate Output (+HS): Reduces output capacitance requirements for rapid voltage transitions and improved transient response
• IEEE-488 GPIB Communications (+GPIB): Enables GPIB connection for test equipment integration
• LXI TCP/IP Ethernet Communications (+LXI): Ethernet-based instrumentation platform with full SCPI command support
• Water Cooling (+WC): Available for densely packaged system cabinets with enhanced cooling requirements

Applications

• Test and measurement systems
• Electronics manufacturing and assembly
• Research and development laboratories
• Precision power delivery
