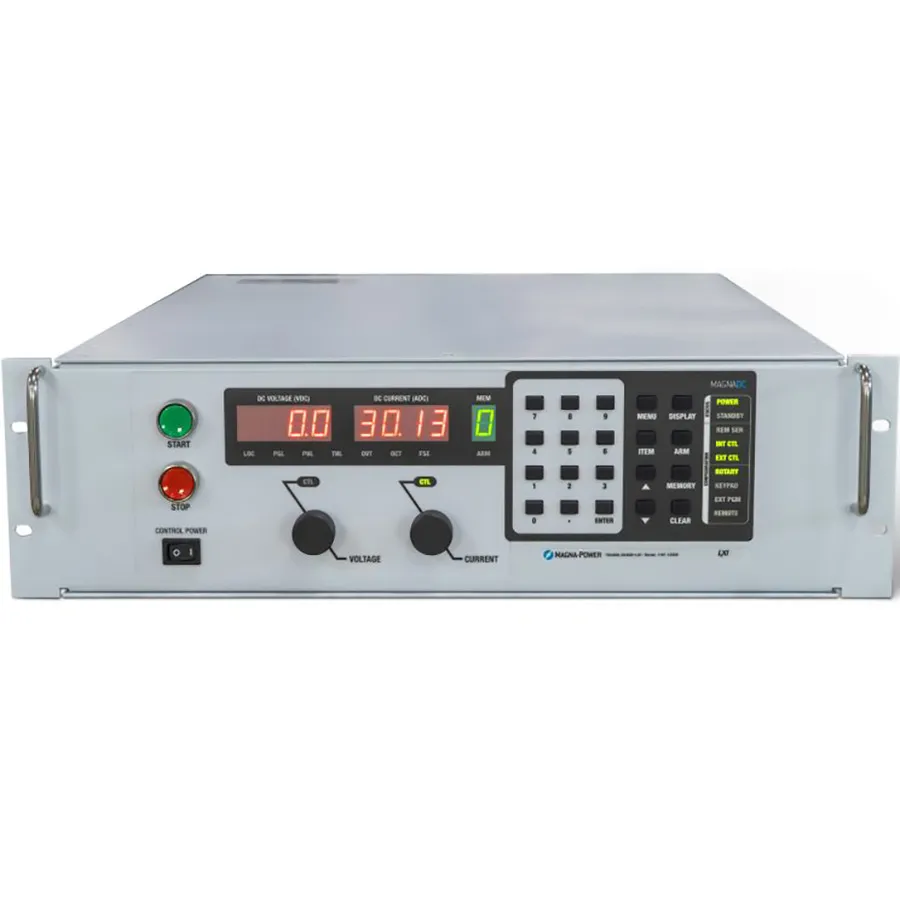

Magna Power TSD1000-15/208+GPIB DC Power Supply
Request a quote
Magna Power TSD1000-15/208+GPIB programmable DC power supply with 1000V output, 15A current, 15kW power, 3U rack-mount, and GPIB communications for instrument control.
Product details
| Model | TSD1000-15/208+GPIB |
| Manufacturer | Magna Power |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Magna Power TSD1000-15/208+GPIB is a compact programmable DC power supply with 1000V DC output at 15A current (15kW total), configured with IEEE-488 GPIB communications. This 3U rack-mount unit is ideal for laboratory and automated test systems requiring precise instrument control and integration with legacy test equipment via standard GPIB interconnection.
Key Features
- 1000V DC output, 15A current rating, 15kW power
- IEEE-488 GPIB communications interface
- Compact 3U rack-mount design
- SCPI remote programming API
- High accuracy voltage and current measurements
- Master-Slave functionality for multi-unit operation
- Remote sensing for precise output regulation
- 37-Pin external user I/O interface
- RS232 interface plus GPIB connectivity
- 0-10V external analog inputs
- Programmable protection limits
- Fast transient response
- NI LabVIEW and IVI driver support
- Interlock shutdown input
- Designed and manufactured in the USA
Applications
- GPIB-based automated test systems
- Legacy instrument integration
- Laboratory high-voltage testing
- Industrial characterization and quality control
Specifications
| Voltage Range Selector | 1,000-1,999 |
| Output Voltage | 1 kV |
| Current Range Selector | 10-19.9 |
| Output Current | 15 A |
| Power Range Selector | 10,000-19,999 |
| Power Rating | 15 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 208 VAC |
| Series | TS Series |
