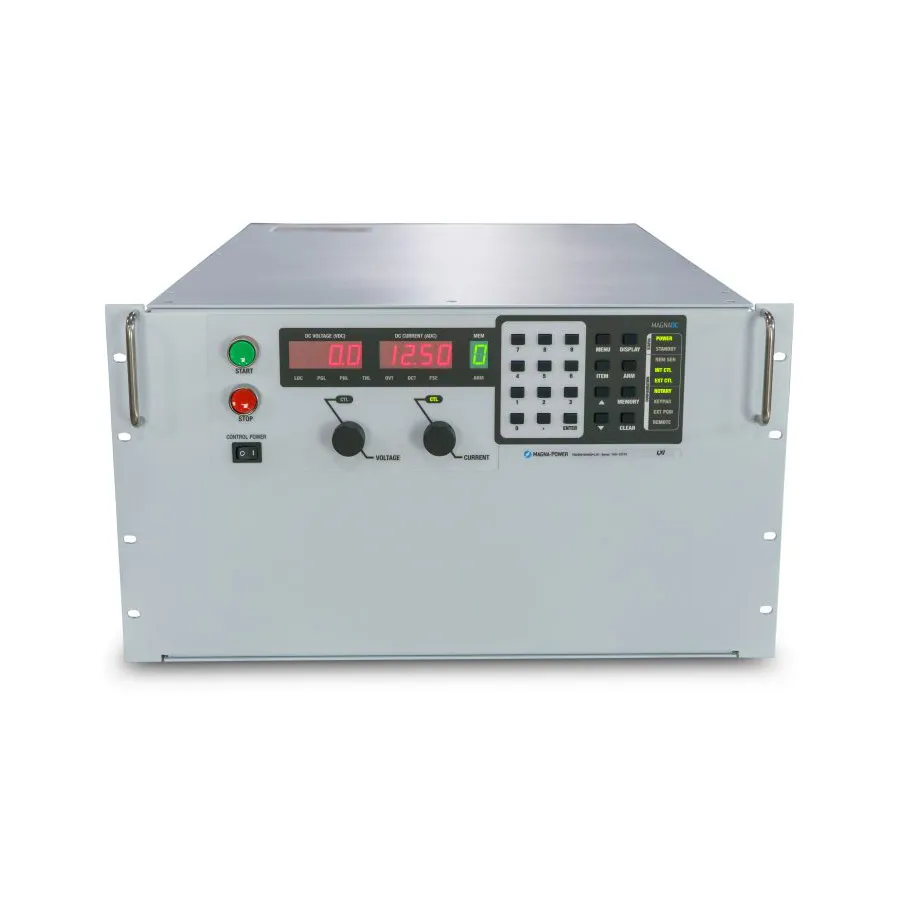

Magna Power TSD100-300/240+HS DC Power Supply
Request a quote
Magna Power TSD100-300/240+HS is a 30kW programmable DC supply with 100V/300A output, High Slew Rate option enabling rapid voltage transitions.
Product details
| Model | TSD100-300/240+HS |
| Manufacturer | Magna Power |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Magna Power TSD100-300/240+HS is a programmable DC power supply delivering 100V at 300A for 30kW total output with High Slew Rate (+HS) option. Part of the TS Series, it combines high power capacity with exceptional power density in a compact 6U rack-mount form factor. The High Slew Rate feature enables rapid voltage transitions by reducing output capacitance, addressing limitations inherent in switching power supply design and enabling dynamic test scenarios requiring fast voltage changes.
Key Features
- 100V output, 300A maximum current, 30kW total power
- High Slew Rate Output (+HS) for rapid voltage transitions
- SCPI Remote Programming API for flexible automation
- High Accuracy Measurements
- Master-Slave Functionality for multi-unit systems
- Remote Sensing with isolated 37-Pin External User I/O
- RS232 Interface with optional Ethernet and GPIB
- 0-10V External Analog Inputs
- Programmable Protection Limits
- Fast Transient Response
- NI LabVIEW™ and IVI Driver Support
- Designed and Manufactured in the USA
Applications
- Dynamic power testing with rapid voltage transitions
- Laboratory and R&D testing and characterization
- Industrial equipment testing and commissioning
- Automated test systems requiring transient response
- Power system simulation and fast switching applications
Specifications
| Voltage Range Selector | 100-199 |
| Output Voltage | 100 V |
| Current Range Selector | 200-499 |
| Output Current | 300 A |
| Power Range Selector | 30,000-49,999 |
| Power Rating | 30 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 240 VAC |
| Series | TS Series |
