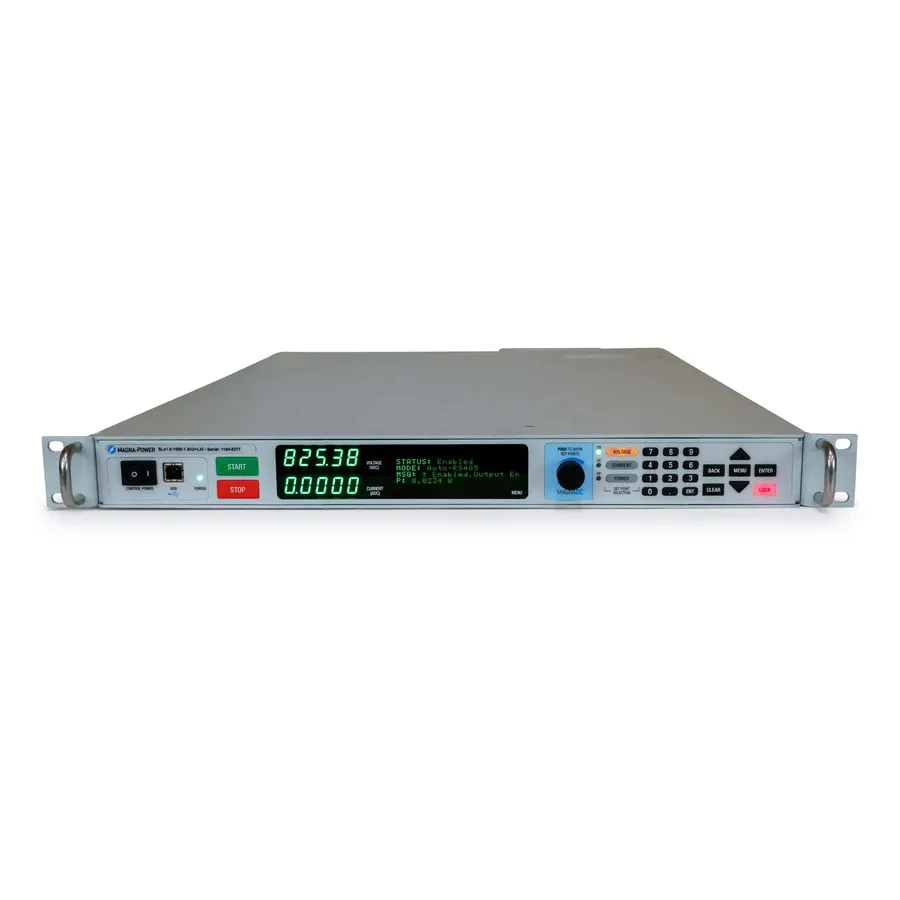

Magna Power SLx1.5-800-1.8/208 Programmable DC Power Supply
Request a quote
Magna Power SLx1.5-800-1.8/208 1.5kW programmable DC power supply with 800VDC/1.8A output and 16-bit precision control.
Product details
| Model | SLx1.5-800-1.8/208 |
| Manufacturer | Magna Power |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Magna Power SLx Series is a versatile programmable DC power supply designed for research and development, industrial automation, and process control applications. The SLx1.5-800-1.8/208 model delivers 800VDC at 1.8A with 1.5kW rated power, making it ideal for high-voltage, low-current applications. Built on the state-of-the-art MagnaLINK™ distributed DSP digital control architecture, this unit provides reliable and precise power delivery with industry-leading power density and rugged current-fed power processing topology.
Key Features
- Output: 800VDC at 1.8ADC (1.5kW)
- 16-bit precision with single-bit control resolution
- Voltage, current, and power control modes
- Programmable protection features (overvoltage, overcurrent, overtemperature)
- Hardware emergency stop and interlock capability
- Slew rate control for soft-start operation
- Continuous full-power operation up to 50°C ambient temperature
- Configurable analog-digital 26-pin I/O port
- Master-slaving support via digital-hybrid MagnaLINK architecture
- Local, remote, and leadless voltage sensing options
- SCPI and Modbus command sets for instrument control
- Multiple communication interfaces: USB, RS485, CAN, EtherCAT, EtherNet/IP, LXI TCP/IP, ModbusTCP, PROFINET
- MagnaCTRL software platform included
- Manufactured in the USA
Applications
- High-voltage component testing and characterization
- Research and development power system testing
- Industrial automation and process control
- High-voltage power supply systems
- Prototype development and validation
Specifications
| Voltage Range Selector | 500-999 |
| Output Voltage | 800 V |
| Current Range Selector | 0-2.49 |
| Output Current | 1.8 A |
| Power Range Selector | 1,000-2,499 |
| Power Rating | 1.5 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 280 VAC |
| Series | SLx Series |
| Display | Digital |
| Interface | RS-232 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 1U |
