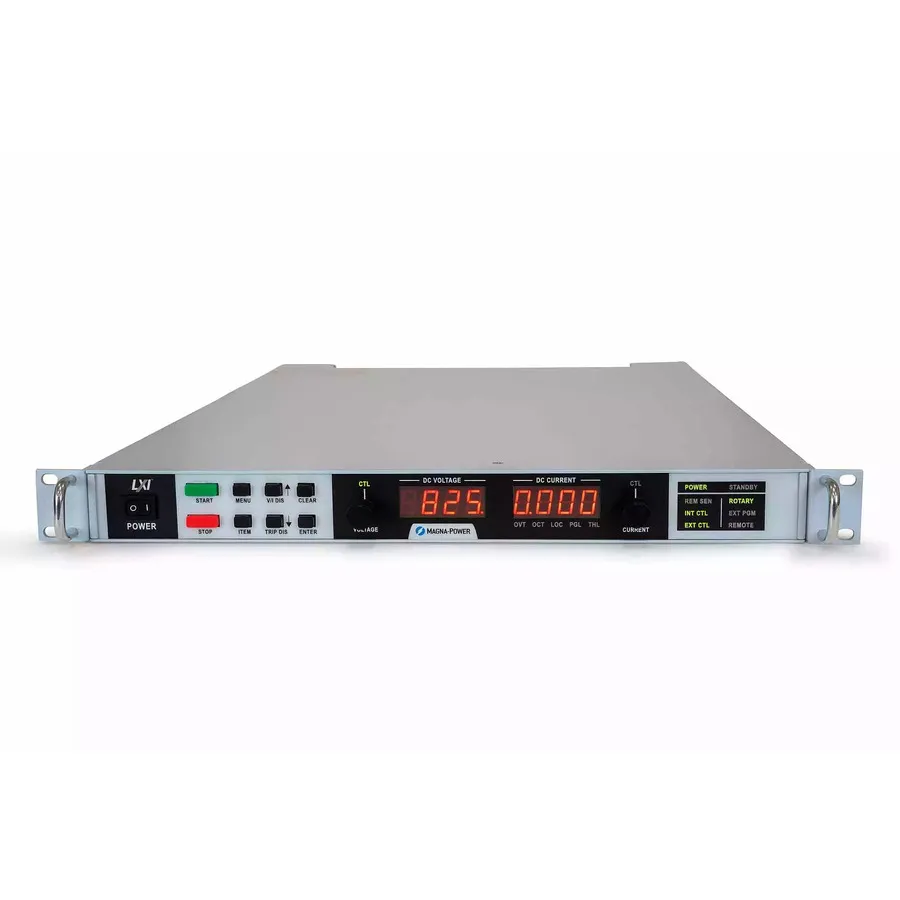

Magna Power SL50-52/UI2+LXI DC Power Supply
Request a quote
Magna Power SL50-52/UI2+LXI 1U DC power supply delivers 50V/52A (2.6kW) with SCPI/LXI remote control, master-slave capability, and comprehensive safety for ATE.
Product details
| Model | SL50-52/UI2+LXI |
| Manufacturer | Magna Power |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Magna Power SL50-52/UI2+LXI is a 1U programmable DC power supply delivering 50V and 52A (2.6kW). Built with current-fed topology and state-of-the-art semiconductors, it is designed for ATE system integrators requiring high-reliability, power-dense solutions with ambient operation up to 50°C.
Key Features
- SCPI remote programming API
- LXI TCP/IP Ethernet communications interface
- Master-slave functionality for system expansion
- Remote sensing and high accuracy measurements
- 37-pin external user I/O connector
- Multiple communication options: RS232, Ethernet, GPIB
- 0-10V external analog inputs
- Programmable protection limits
- Fast transient response
- NI LabVIEW and IVI driver support
Applications
- Automated test equipment (ATE) systems
- System integration for production testing
- Electronic device characterization
Specifications
| Voltage Range Selector | 50-99.9 |
| Output Voltage | 50 V |
| Current Range Selector | 50-99.9 |
| Output Current | 52 A |
| Power Range Selector | 2,500-4,999 |
| Power Rating | 2.6 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 187-265 VAC |
| Series | SL Series |
| Display | Digital |
| Interface | RS-232, LXI TCP/IP Ethernet |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 1U |
| Special Features | Master/Slave Modes, Remote Sense, Universal Input |
