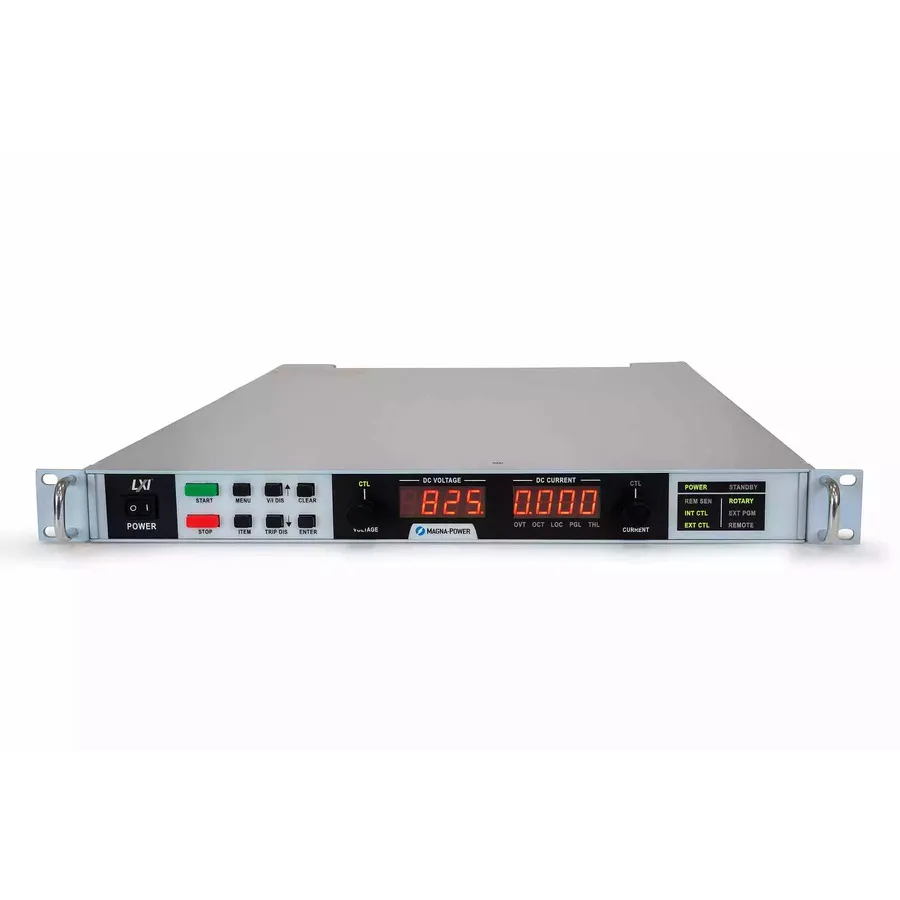

Magna Power SL5-250/UI+LXI DC Power Supply

Overview

The Magna Power SL5-250/UI+LXI is a programmable 5V, 250A DC power supply delivering 1.5kW of output power. Part of the SL Series, it employs Magna-Power's signature current-fed power processing topology with state-of-the-art semiconductors and innovative heat sink design. The compact 1U (1.75" height) form factor is ideal for high-density ATE system integration, with ambient operating temperature rating to 50°C. Designed and manufactured in the USA, the unit features extensive safety and diagnostic capabilities including AC phase loss detection, programmable over voltage and over current protection, and external emergency stop integration.

Key Features

• SCPI remote programming API with NI LabVIEW and IVI driver support
• Ethernet and GPIB communication interfaces available
• RS232 interface with 37-pin external user I/O
• 0-10V external analog inputs for flexible control
• Master-slave functionality for multi-unit parallel operation
• Remote sensing for accurate voltage regulation at the load
• Fast transient response for dynamic load changes
• Programmable protection limits and diagnostic functions
• AC contactor mechanically disconnects AC mains during standby

Applications

• Automated Test Equipment (ATE) systems
• Semiconductor device testing and characterization
• Component burn-in testing
• Laboratory research and development
• Manufacturing test systems
