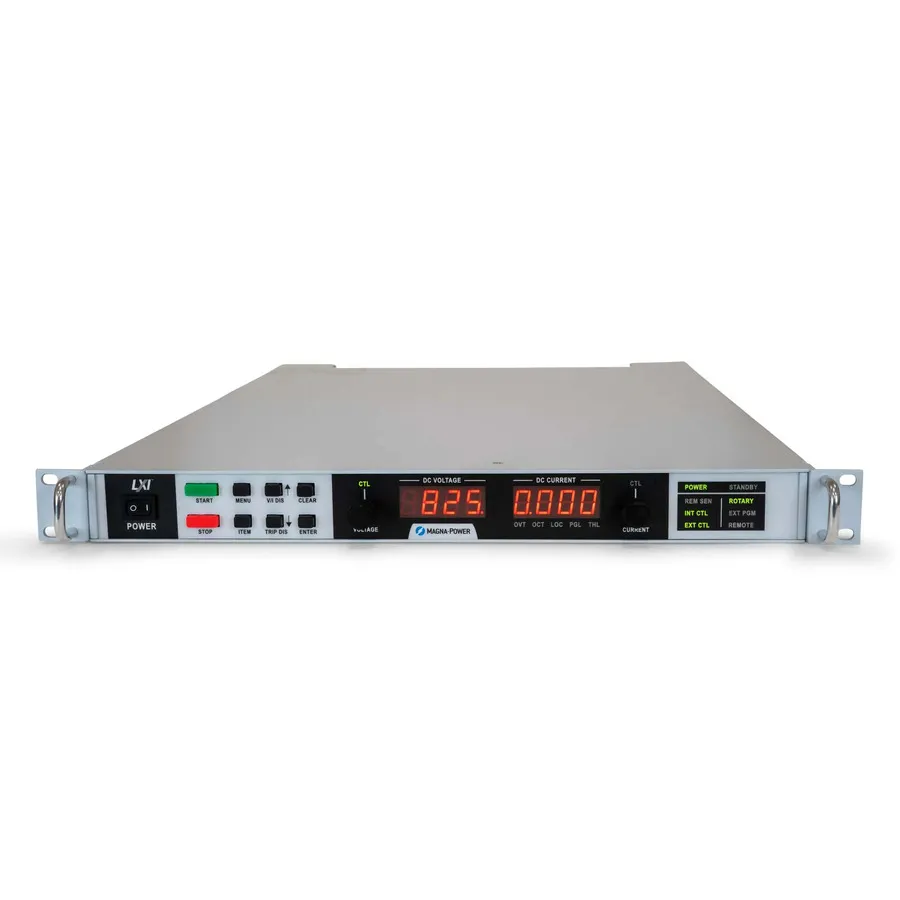

Magna Power SL400-3.7/UI+HS+LXI DC Power Supply
Request a quote
Magna Power SL400-3.7/UI+HS+LXI programmable DC supply offers 400V, 3.7A (1.5kW) with high slew rate and LXI TCP/IP Ethernet for integrated test systems.
Product details
| Model | SL400-3.7/UI+HS+LXI |
| Manufacturer | Magna Power |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Magna Power SL400-3.7/UI+HS+LXI is a programmable DC power supply from the SL Series, combining high slew rate output and LXI TCP/IP Ethernet connectivity for networked test environments. It delivers 400V at 3.7A (1.5kW) using current-fed topology technology. Designed and manufactured in the USA, it serves high-speed ATE and laboratory applications requiring fast response and integrated network control.
Key Features
- 400V, 3.7A output (1.5kW)
- High slew rate output (+HS option)
- LXI TCP/IP Ethernet communications (+LXI option)
- SCPI remote programming API
- Master-slave functionality
- Remote sensing capability
- 37-pin external user I/O
- RS232 interface
- Fast transient response
- NI LabVIEW and IVI driver support
Applications
- Networked automated test equipment (ATE)
- High-speed power systems testing
- Integrated laboratory instrumentation systems
- Device characterization and burn-in testing
Specifications
| Voltage Range Selector | 300-499 |
| Output Voltage | 400 V |
| Current Range Selector | 2.5-4.9 |
| Output Current | 3.7 A |
| Power Range Selector | 1,000-2,499 |
| Power Rating | 1.5 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 85-265 VAC |
| Series | SL Series |
| Display | Digital |
| Interface | LXI,RS-232 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 1U |
| Special Features | High Slew Rate, Master/Slave Modes, Remote Sense, Universal Input |
