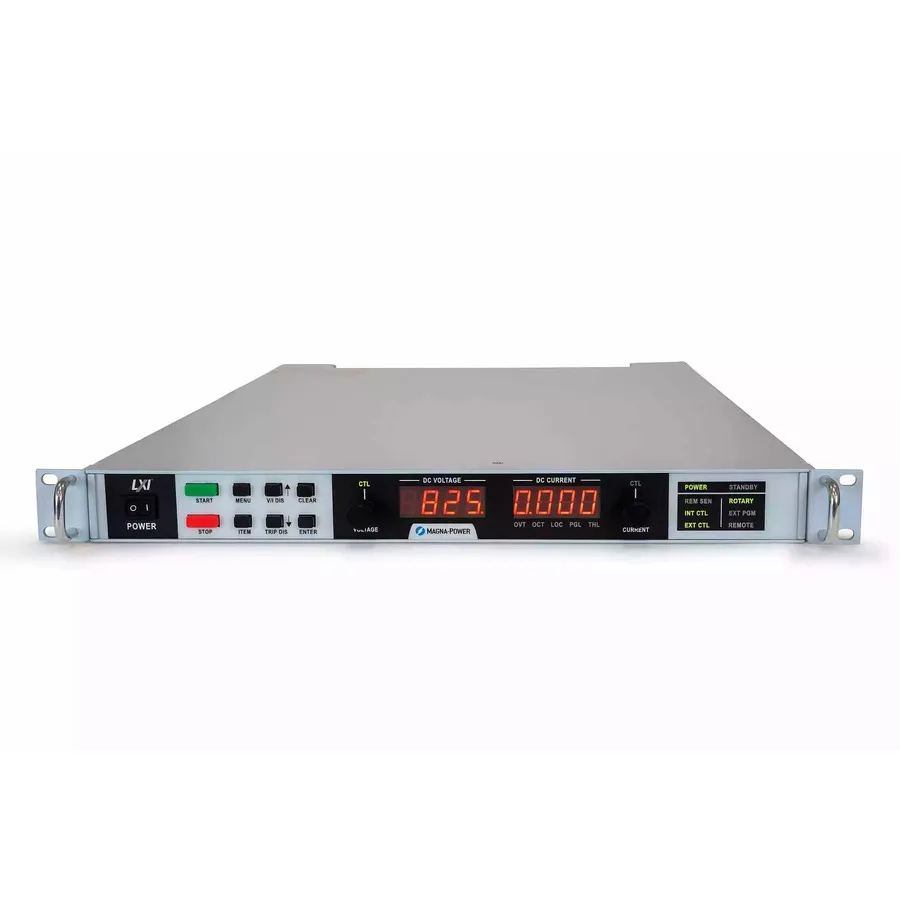

Magna Power SL40-65/208+GPIB+HS DC Power Supply

Overview

The Magna Power SL40-65/208+GPIB+HS is a programmable DC power supply delivering 40V at 65A (2.6 kW) in a 1U rack-mount form factor. This variant includes GPIB (IEEE-488) communications and high slew rate output capability for demanding ATE system integrators requiring precise transient control and instrument integration. Built on Magna Power's current-fed topology and manufactured in the USA with UL/CSA and CE certifications.

Key Features

• SCPI remote programming API with NI LabVIEW and IVI drivers
• IEEE-488 (GPIB) communications interface included
• High slew rate output module for rapid voltage transitions
• High accuracy voltage and current measurements
• Master-slave functionality for parallel operation
• Remote sensing with 0-10V external analog inputs
• 37-pin external user I/O with RS232 interface
• Programmable output protection with current limiting
• Automatic AC phase loss and thermal monitoring
• Mechanical AC mains disconnect in standby/fault modes

Applications

• Automated test equipment (ATE) with GPIB instrument integration
• Semiconductor device characterization with precision control
• Manufacturing test systems requiring fast transient response
• Industrial control and power conversion applications
• Research laboratories and advanced test benches
