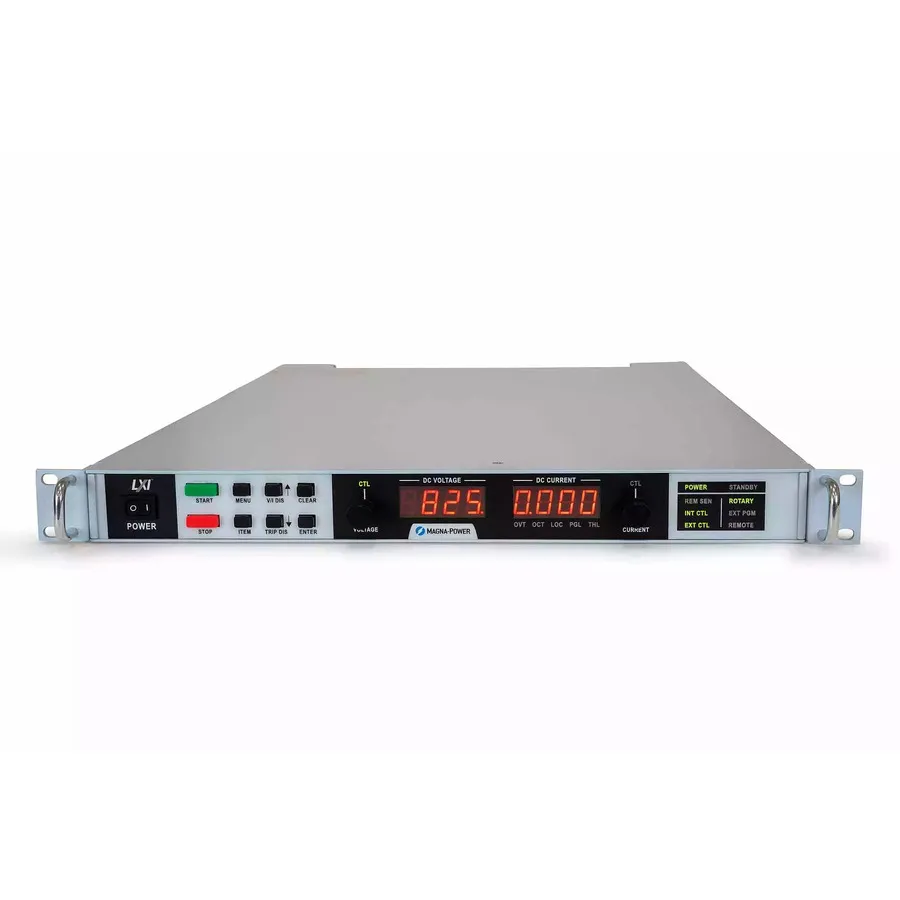

Magna Power SL375-4/UI DC Power Supply
Magna Power SL375-4/UI is a 1.5 kW programmable DC power supply with 375V/4A output, universal AC input 85-265VAC, and 1U rack form.
Product details
| Model | SL375-4/UI |
| Manufacturer | Magna Power |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Magna Power SL375-4/UI is a 1.5 kW programmable DC power supply from the SL Series, designed for automated test equipment (ATE) system integrators. Built using Magna-Power's current-fed power processing topology with state-of-the-art semiconductors, this 1U rack-mount supply delivers 375V at 4A output with high accuracy measurements and remote sensing capabilities. The universal input model accepts 85-265VAC, making it suitable for global applications. Designed and manufactured in the USA, the SL Series maintains a reliable ambient operating temperature rating up to 50°C.
Specifications
| Voltage Range Selector | 300-499 |
| Output Voltage | 375 V |
| Current Range Selector | 2.5-4.9 |
| Output Current | 4 A |
| Power Range Selector | 1,000-2,499 |
| Power Rating | 1.5 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 85-265 VAC |
| Series | SL Series |
| Display | Digital |
| Interface | RS-232 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 1U |
| Special Features | Master/Slave Modes, Remote Sense, Universal Input |
