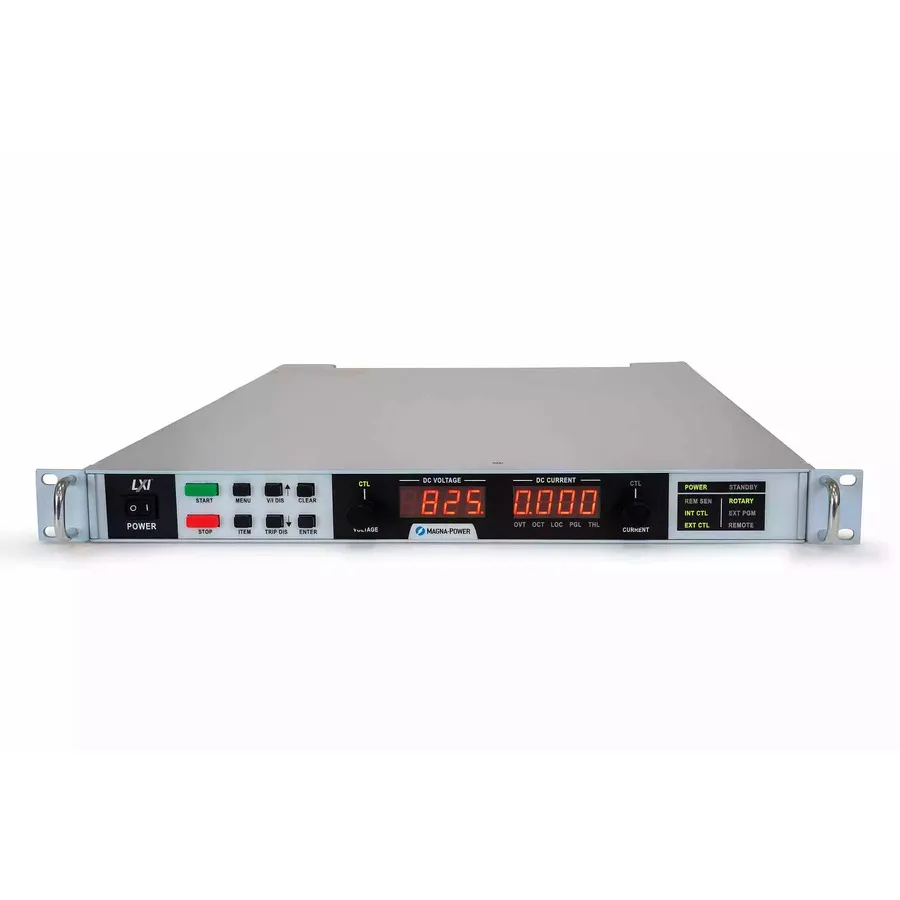

Magna Power SL375-10.4/208+HS+LXI DC Power Supply
Request a quote
Magna Power SL375-10.4 programmable DC supply with 375V/10.4A output, high slew rate option, LXI Ethernet communications, and 208VAC input.
Product details
| Model | SL375-10.4/208+HS+LXI |
| Manufacturer | Magna Power |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Magna Power SL375-10.4 is a programmable DC power supply from the SL Series, delivering 375V at 10.4A (4kW) in a compact 1U rack-mount form factor. Engineered for ATE system integrators and high-reliability applications, it uses current-fed power processing topology with state-of-the-art semiconductors for consistent performance with an ambient operating temperature rating up to 50°C.
Key Features
- Output: 375V DC, 10.4A maximum
- 1U (1.75" height) rack-mount chassis
- SCPI remote programming API with LabVIEW and IVI driver support
- Master-Slave capability for parallel operation
- Remote voltage sensing for precision output regulation
- 37-pin external user I/O connector
- RS232 standard; optional Ethernet (LXI) and IEEE-488 GPIB communications
- 0-10V analog input for external control
- Programmable overvoltage and overcurrent protection limits
- Fast transient response and external emergency shutdown input
- AC contactor isolation ensures safe mechanical disconnection in standby
- Comprehensive diagnostics including phase loss and thermal monitoring
- Built and certified in the USA; UL/CSA listed, CE Mark
Applications
- Automated Test Equipment (ATE) and system integration
- Laboratory testing and research
- Burn-in and system validation
- Industrial power distribution where programmable control is required
Specifications
| Voltage Range Selector | 300-499 |
| Output Voltage | 375 V |
| Current Range Selector | 10-19.9 |
| Output Current | 10.4 A |
| Power Range Selector | 2,500-4,999 |
| Power Rating | 4 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 208 VAC |
| Display | Digital |
| Interface | LXI,RS-232 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 1U |
| Special Features | High Slew Rate, Master/Slave Modes, Remote Sense |
