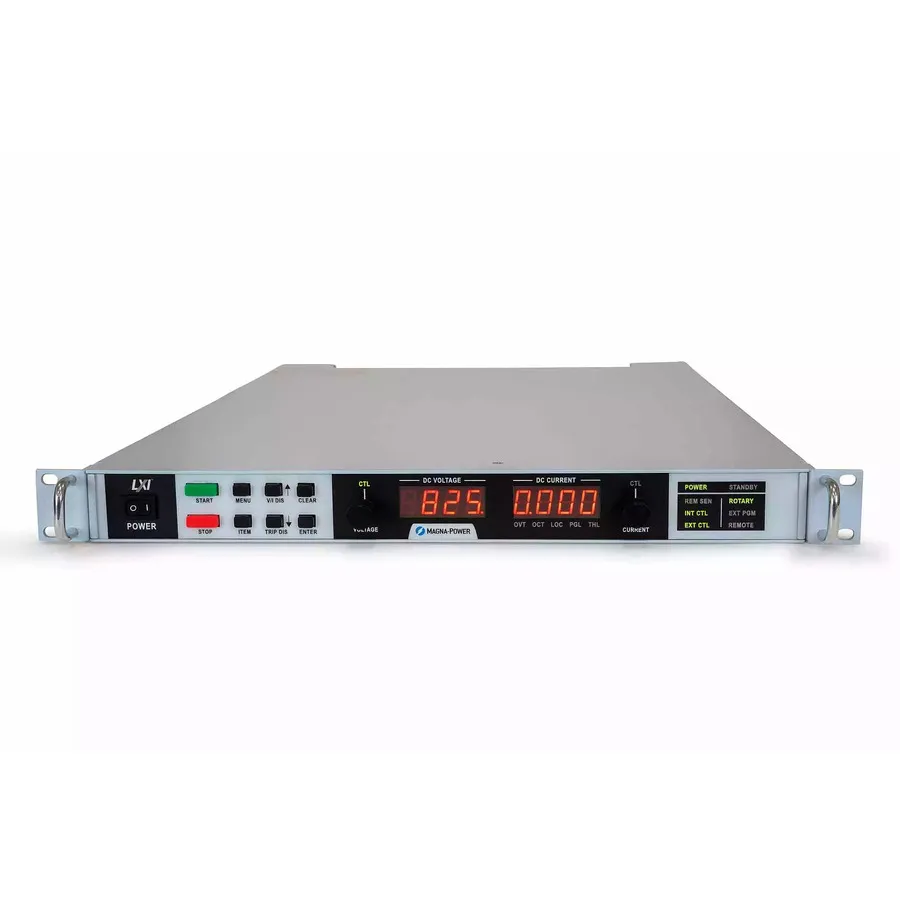

Magna Power SL32-46/UI+LXI+RUG DC Power Supply

Overview

The Magna Power SL32-46/UI+LXI+RUG is a 1U rack-mount ruggedized programmable DC power supply designed for demanding automated test equipment and harsh environment applications. With a maximum output of 32V and 46A (1.5 kW), this unit features Magna-Power's proven current-fed topology that delivers high power density and reliability. Built for ruggedness without sacrificing performance, this unit is ideal for systems requiring enhanced durability. Designed and manufactured in the USA, the unit operates reliably at ambient temperatures up to 50°C.

Key Features

• 1U rack-mount form factor (1.75" height) with ruggedized construction
• Current-fed topology for superior power density and reliability
• Enhanced durability for harsh environment operation
• SCPI remote programming API for complete system control
• Multiple communication interfaces: RS232, LXI Ethernet, optional GPIB
• Master-slave functionality for parallel multi-unit configurations
• Remote sensing for voltage accuracy and stability
• 37-pin external user I/O connector
• 0-10V external analog inputs for programmable control
• NI LabVIEW and IVI driver support
• Extensive built-in protection including phase loss detection, thermal monitoring, and programmable over-voltage/over-current protection

Applications

• Automated test equipment (ATE) in harsh environments
• Mobile and portable test systems
• Field-deployable testing applications
• Multi-unit parallel configurations via master-slave connectivity
