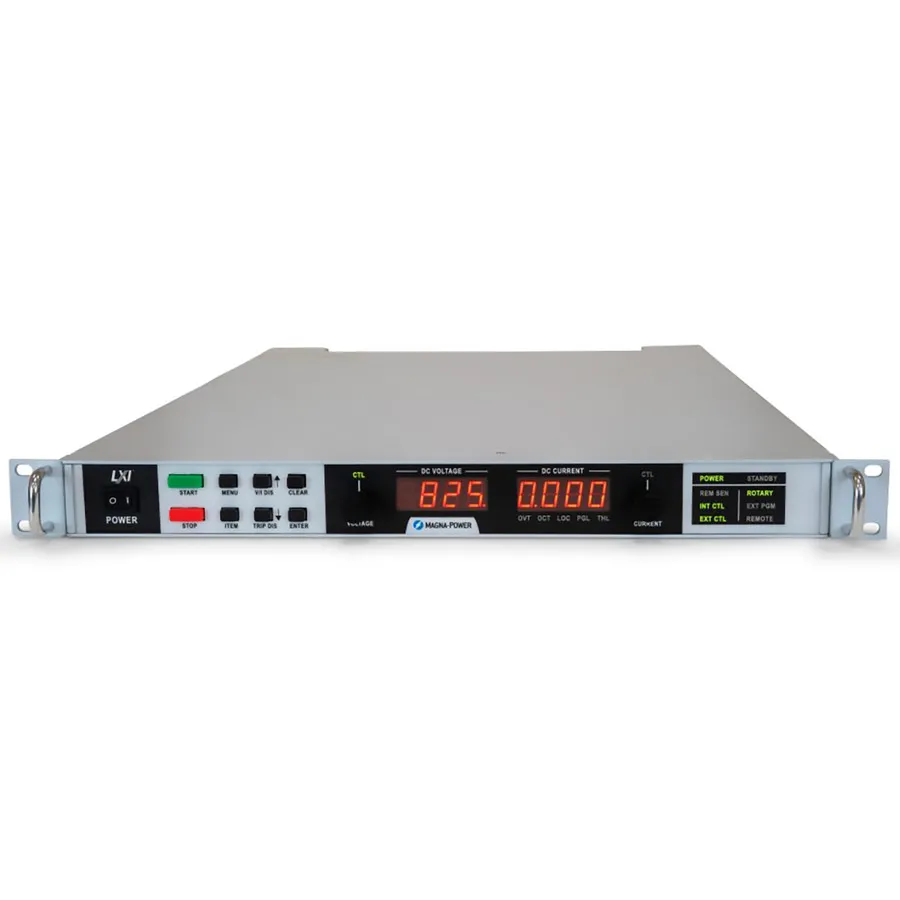

Magna Power SL200-30/208+HS+LXI+RUG DC Power Supply

Overview

The Magna Power SL200-30/208 is a 1U programmable DC power supply part of the SL Series, designed for ATE system integrators. This model includes high slew rate output (HS), LXI Ethernet communications (LXI), and ruggedized mechanical enhancements (RUG). It delivers 200V at 30A (6kW output) using Magna-Power's current-fed power processing topology with state-of-the-art semiconductors and reinforced heat sinks. The supply accepts 208V AC input and maintains an ambient operating temperature rating up to 50°C. Designed and manufactured in the USA.

Key Features

• 1U rack-mount (1.75" height) compact form factor with 208V AC input
• High slew rate output for rapid voltage transitions with reduced output capacitance
• Current-fed topology for reliable power density
• LXI TCP/IP Ethernet communications for remote control and SCPI command support
• Ruggedized mechanical construction for enhanced mechanical security
• SCPI remote programming API with NI LabVIEW and IVI driver support
• Master-slave functionality for parallel operation
• Remote sensing and 0-10V external analog inputs
• 37-pin external user I/O and RS232 interface
• Programmable protection limits with fast transient response
• Extensive safety diagnostics including AC phase loss, thermal, over-voltage, and over-current monitoring
• Mechanical AC contactor disconnect for safe standby operation

Applications

• Automated test equipment (ATE) system integration in demanding environments
• Component and sub-assembly testing with dynamic load requirements
• Power supply for precision instrumentation requiring network control
• Manufacturing and quality assurance testing in industrial settings
• Remote monitoring and control via Ethernet network
