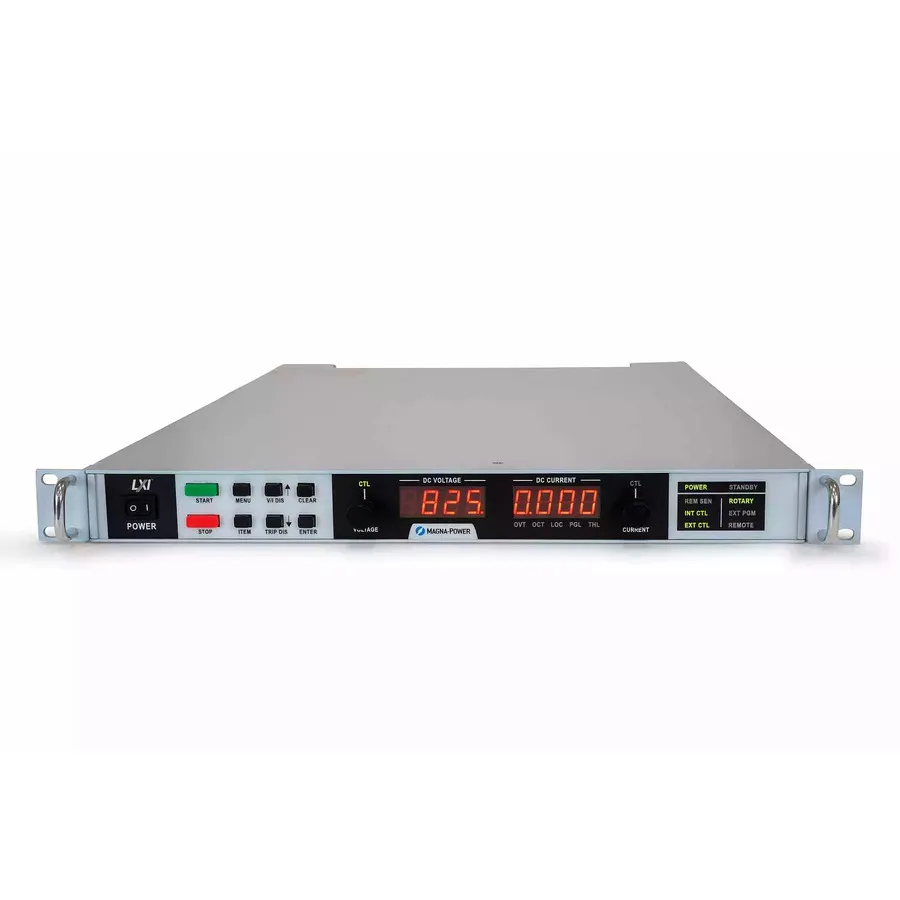

Magna Power SL200-13/208+LXI DC Power Supply
Request a quote
Magna Power SL200-13/208+LXI is a programmable 200VDC, 13A DC power supply rated for 2.6kW with integrated LXI Ethernet, SCPI control, and comprehensive I/O options.
Product details
| Model | SL200-13/208+LXI |
| Manufacturer | Magna Power |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Magna Power SL200-13/208+LXI is a programmable 1U rackmount DC power supply rated for 200VDC at 13A (2.6kW output) with 208VAC input. This model includes integrated LXI TCP/IP Ethernet communications as standard, along with SCPI remote programming, making it ideal for networked ATE systems and automated laboratory environments.
Key Features
- 1U rackmount chassis (1.75" height)
- LXI TCP/IP Ethernet communications included as standard
- SCPI remote programming with NI LabVIEW and IVI driver support
- High accuracy voltage and current measurements
- Master-slave functionality for parallel operation
- Remote sensing for precise load regulation
- 37-pin external user I/O and 0-10V analog inputs
- Fast transient response
- Programmable overvoltage and overcurrent protection
- AC phase loss and thermal monitoring
- Interlock shutdown input with emergency stop capability
- RS232 and optional GPIB connectivity
- UL/CSA listed, CE marked, USA manufactured
Applications
- Automated Test Equipment (ATE) systems with network integration
- Electronic component and device testing
- Industrial power supply and conditioning
- Laboratory and research applications
- Burn-in and reliability testing
Specifications
| Voltage Range Selector | 200-299 |
| Output Voltage | 200 V |
| Current Range Selector | 10-19.9 |
| Output Current | 13 A |
| Power Range Selector | 2,500-4,999 |
| Power Rating | 2.6 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 208 VAC |
| Display | Digital |
| Interface | LXI,RS-232 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 1U |
| Special Features | Master/Slave Modes, Remote Sense |
