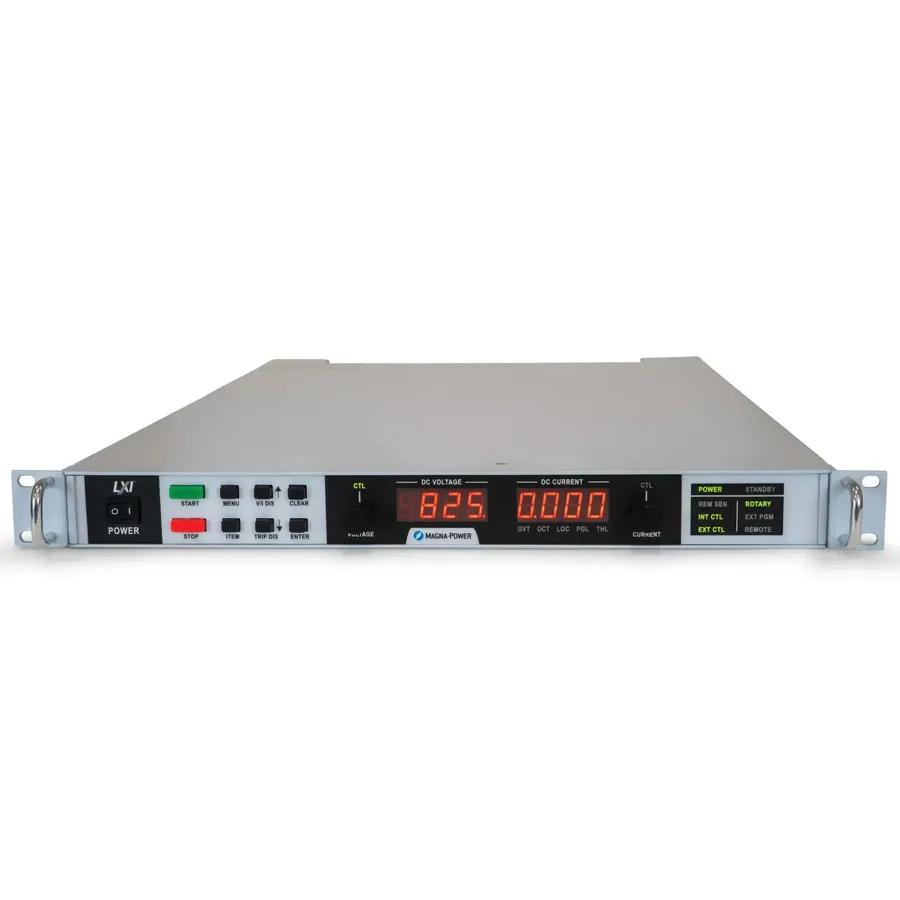

Magna Power SL20-250/208+LXI DC Power Supply
Request a quote
Magna Power SL20-250/208+LXI is a 1U programmable DC power supply with 20VDC/250A output, 5kW power, SCPI control, and LXI Ethernet connectivity.
Product details
| Model | SL20-250/208+LXI |
| Manufacturer | Magna Power |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Magna Power SL20-250/208+LXI is a programmable DC power supply from the SL Series, featuring a current-fed topology designed for highly reliable power delivery in ATE system integration. The unit delivers 20VDC at up to 250A (5kW) in an industry-leading 1U rack-mount form factor (1.75" height), with state-of-the-art semiconductors and advanced thermal design. This variant includes LXI TCP/IP Ethernet connectivity for enhanced remote monitoring and control. Designed and manufactured in the USA with ambient operating temperature rating up to 50°C.
Key Features
- SCPI Remote Programming API for flexible control
- LXI TCP/IP Ethernet Communications for remote monitoring
- High Accuracy Measurements for precision testing
- Master-Slave Functionality for parallel configurations
- Remote Sensing for optimized voltage regulation
- 37-Pin External User I/O for system integration
- RS232 and GPIB interface options
- 0-10V External Analog Inputs
- Programmable Protection Limits with fast transient response
- NI LabVIEW and IVI Driver compatibility
- Comprehensive diagnostic functions including AC phase loss detection, thermal monitoring, and overvoltage/overcurrent protection
- Interlock Shutdown Input for external emergency stop systems
Applications
- Automated Test Equipment (ATE) system integration with Ethernet control
- Networked testing environments and remote labs
- High-reliability power-hungry testing and validation
Specifications
| Voltage Range Selector | 20-29.9 |
| Output Voltage | 20 V |
| Current Range Selector | 200-499 |
| Output Current | 20 A |
| Power Range Selector | 5,000-9,999 |
| Power Rating | 5 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 208 VAC |
| Series | SL Series |
| Display | Digital |
| Interface | LXI,RS-232 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 1U |
| Special Features | Master/Slave Modes, Remote Sense |
