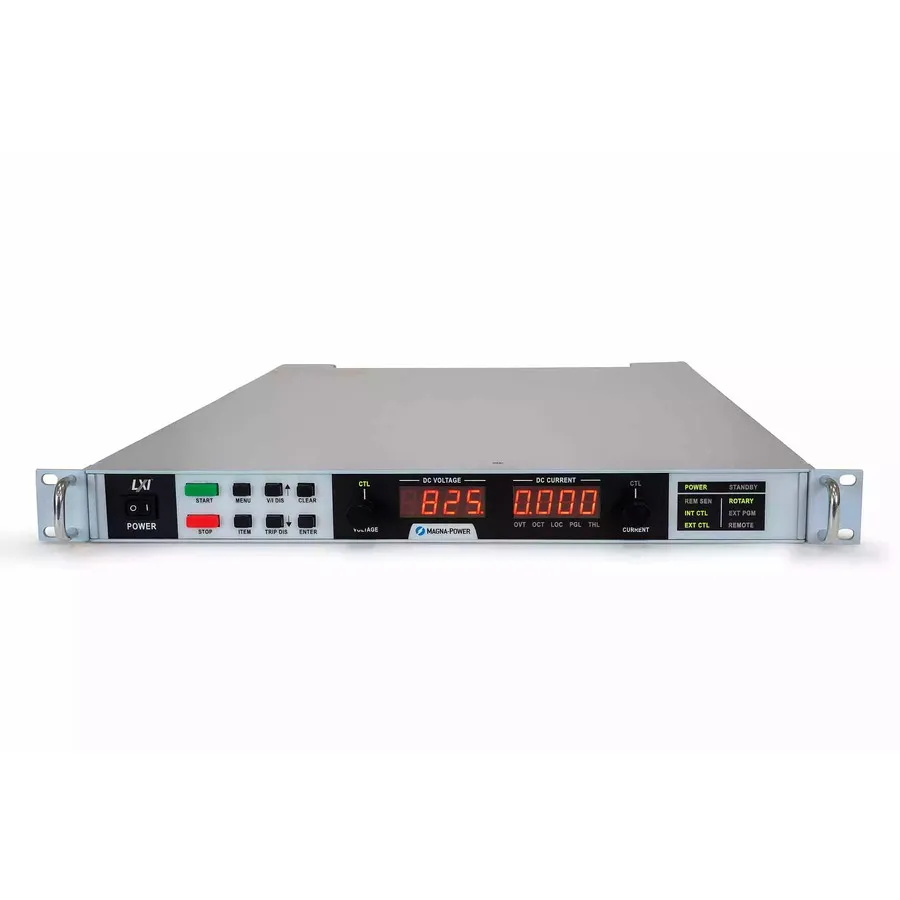

Magna Power SL16-93/UI DC Power Supply
Request a quote
Magna Power SL16-93/UI is a 1.5kW 1U rack-mount DC supply with 16V/93A output, universal input (85-265VAC), and full remote programming via SCPI.
Product details
| Model | SL16-93/UI |
| Manufacturer | Magna Power |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Magna Power SL16-93/UI is a 1.5kW programmable DC power supply designed for demanding ATE systems and laboratory applications requiring universal input flexibility. Built on Magna-Power's proven current-fed power processing topology, it delivers 16V at up to 93A with exceptional reliability. The 1U (1.75" height) rack-mount design and comprehensive remote programming capabilities make it ideal for automated test systems. Universal input (85-265VAC) allows operation across global power standards.
Key Features
- Output: 16V, 93A (1.5kW)
- Universal input: 85-265VAC (single or three-phase)
- 1U (1.75") rack-mount form factor
- Current-fed topology with fast transient response
- SCPI remote programming API
- RS232, Ethernet, and GPIB interface options
- 37-pin external user I/O
- High accuracy measurements and remote sensing
- Master-slave functionality for load sharing
- Programmable over-voltage and over-current protection
- Operates up to 50°C ambient temperature
- UL/CSA listed, CE marked
- Designed and manufactured in the USA
Applications
- International automated test equipment (ATE) systems
- Global laboratory and research facilities
- Electronic component testing
- Production line power requirements
- Semiconductor device characterization
Specifications
| Voltage Range Selector | 1-19.9 |
| Output Voltage | 16 V |
| Current Range Selector | 50-99.9 |
| Output Current | 93 A |
| Power Range Selector | 1,000-2,499 |
| Power Rating | 1.5 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 85-265 VAC |
| Display | Digital |
| Interface | RS-232 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 1U |
| Special Features | Master/Slave Modes, Remote Sense, Universal Input |
