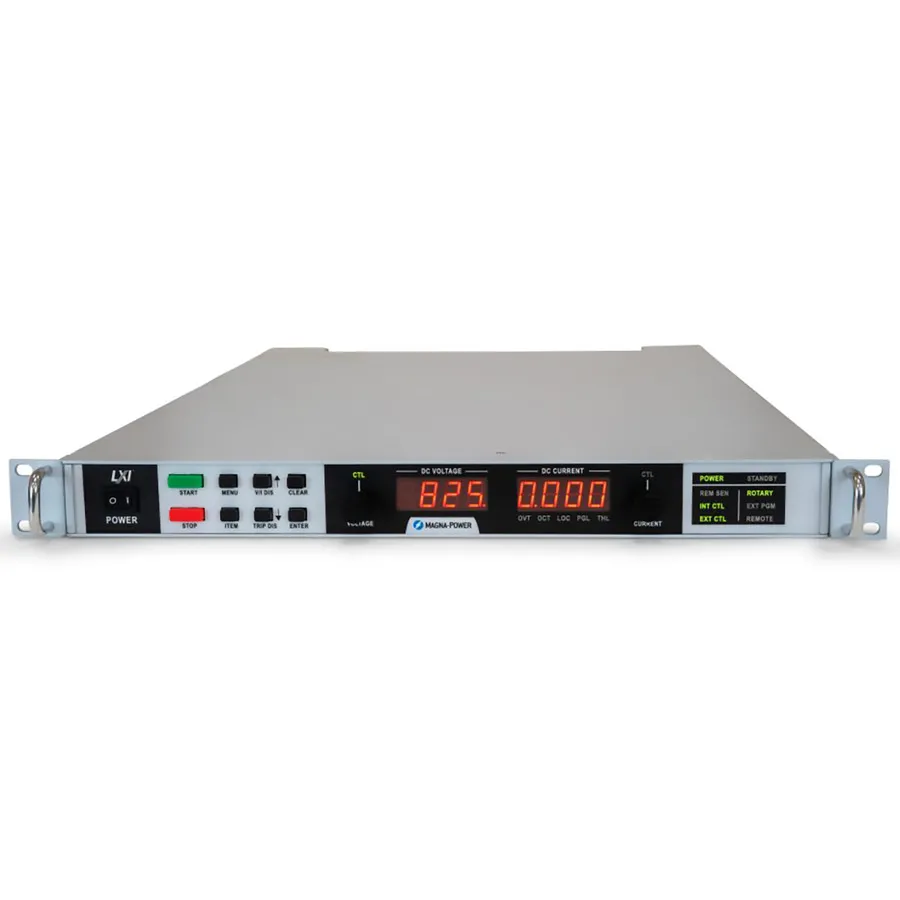

Magna Power SL1500-1/UI+LXI DC Power Supply

Overview

The Magna Power SL1500-1/UI+LXI is a 1.5 kW programmable DC power supply with LXI Ethernet communications built for ATE system integrators and laboratory test environments. The SL Series represents over 40 years of power supply innovation, combining a current-fed topology with state-of-the-art semiconductors and innovative heat sink design. The unit delivers compact 1U (1.75 inch) rack-mount performance with an ambient operating temperature rating up to 50°C. All standard SCPI commands are fully supported over the LXI interface, along with comprehensive remote control software and drivers. Designed and manufactured in the USA.

Key Features

• Output: 1500V DC, 1A DC, 1.5 kW
• SCPI Remote Programming API with high accuracy measurements
• LXI TCP/IP Ethernet Communications with full SCPI command support
• Master-Slave functionality and remote sensing
• 37-Pin external user I/O and RS232 interface
• Ethernet and GPIB communication options available
• 0-10V external analog inputs
• Programmable protection limits with fast transient response
• NI LabVIEW and IVI driver support
• Interlock shutdown input with integrated +5V reference

Available Options

• High Slew Rate Output (+HS) for rapid voltage transitions with reduced output capacitance requirements
• IEEE-488 GPIB Communications (+GPIB) for connecting computers and test instruments
• Ruggedized Configuration (+RUG) with additional mechanical security and extended temperature range
