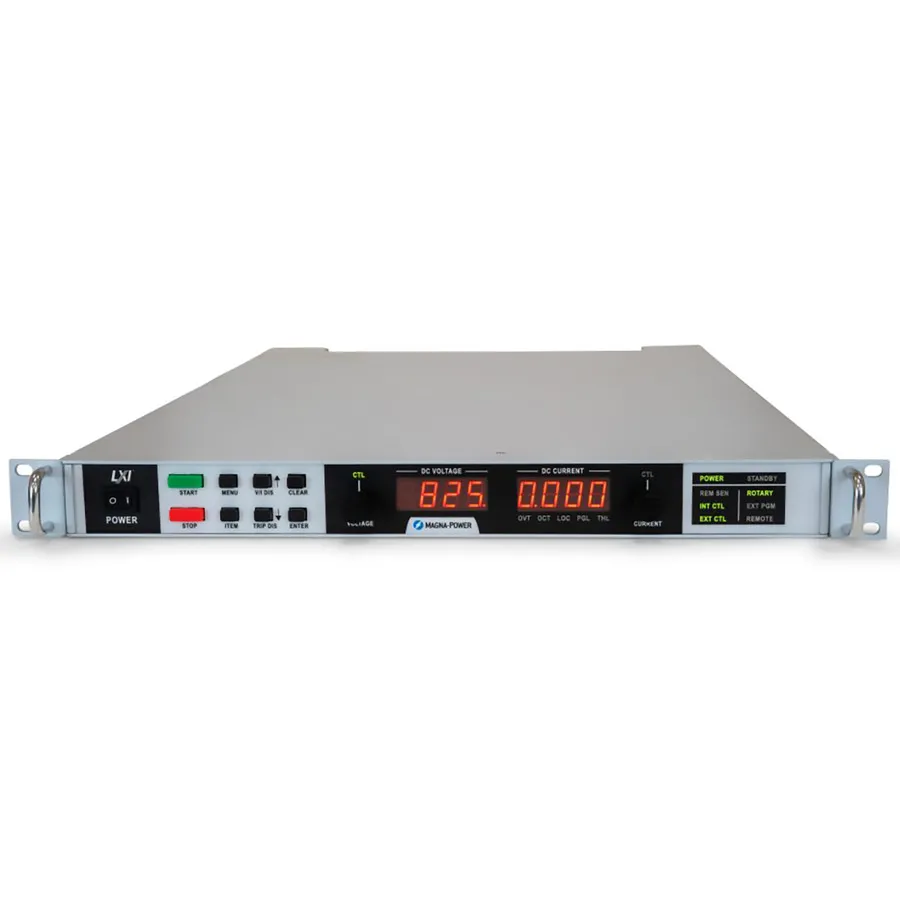

Magna Power SL1250-2/208+GPIB DC Power Supply
Request a quote
Magna Power SL1250-2/208+GPIB is a 1.25 kV, 2 A programmable DC power supply with integrated IEEE-488 GPIB for automated test equipment.
Product details
| Model | SL1250-2/208+GPIB |
| Manufacturer | Magna Power |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Magna Power SL1250-2 is a programmable DC power supply from the SL Series, designed for automated test equipment (ATE) system integration. With a 1U rack-mount form factor and current-fed topology, this model delivers 1.25 kV at 2 A (2.6 kW). The SL Series builds on over 40 years of Magna-Power innovation and is fully designed, manufactured, and tested in the USA.
Key Features
- SCPI remote programming API with NI LabVIEW and IVI drivers
- Master-slave functionality for system scaling and parallel operation
- High-accuracy measurements with fast transient response
- Remote sensing and 0-10V external analog inputs
- 37-pin external user I/O for integration
- IEEE-488 GPIB communications (integrated option)
- RS232 standard; optional Ethernet (LXI) communications
- Programmable protection limits and comprehensive diagnostics
- Mechanical AC contactor for safe power management
- Ambient operating temperature up to 50°C
Applications
- Automated test equipment (ATE) systems
- Power device testing and characterization
- Battery charging and conditioning
- Laboratory research and development
Specifications
| Voltage Range Selector | 1,000-1,999 |
| Output Voltage | 1.25 kV |
| Current Range Selector | 0-2.49 |
| Output Current | 2 A |
| Power Range Selector | 2,500-4,999 |
| Power Rating | 2.6 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 208 VAC |
| Series | SL Series |
