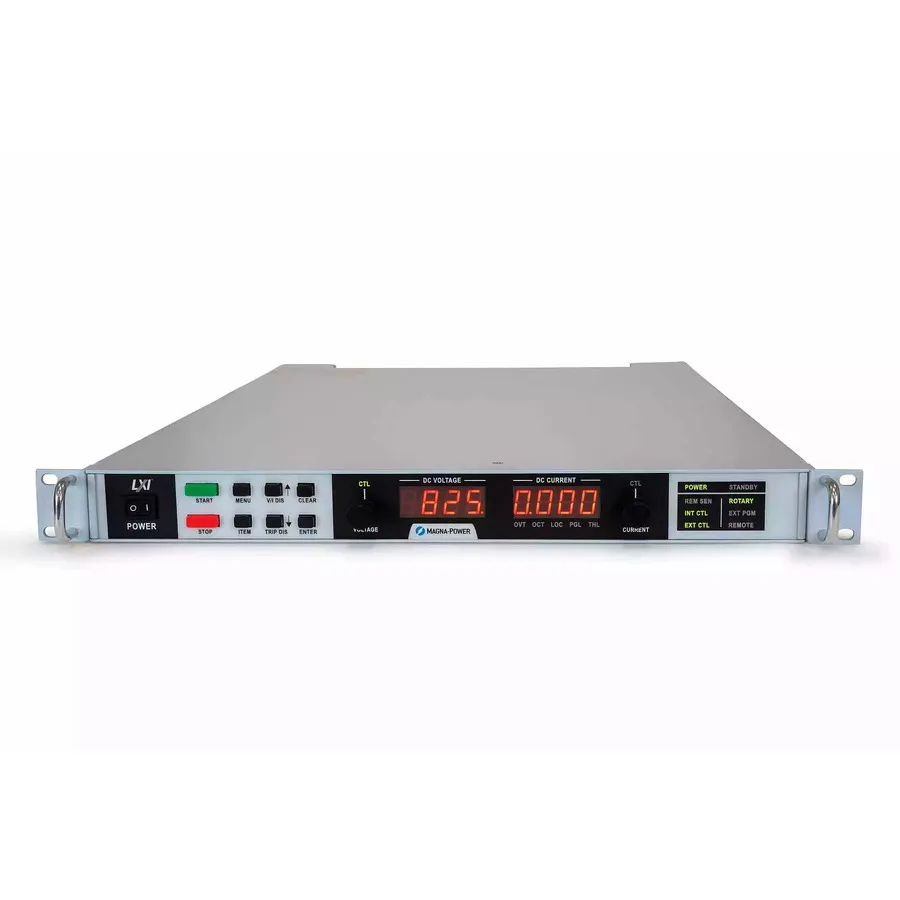

Magna Power SL1000-1.5/UI+LXI DC Power Supply

Overview

The Magna Power SL Series DC power supplies are programmable single-output systems designed for ATE system integrators and automated test applications. The SL1000 series features a maximum 1000V output voltage, current-fed topology for high reliability and power density, and a compact 1U rack-mount form factor (1.75" height). Built on nearly 40 years of innovation, these supplies are USA manufactured with advanced thermal management for ambient operating temperatures up to 50°C.

Key Features

• 1U rack-mount form factor optimized for ATE system integration
• Current-fed topology for high reliability and power density
• SCPI remote programming API with NI LabVIEW and IVI driver support
• Ethernet (LXI) communication for modern networked test systems
• RS232 and 0-10V analog input interfaces
• 37-pin external user I/O connector for system integration
• High accuracy measurements and fast transient response
• Master-slave functionality for multi-unit systems
• Remote sensing for precision voltage regulation
• Programmable protection limits for over-voltage and over-current conditions
• Extensive diagnostic monitoring: AC phase loss, thermal conditions, fuse status, line voltage, and interlock status
• AC contactor provides mechanical disconnect during standby or fault conditions
• External emergency stop integration via dedicated +5V interlock input pin
• UL/CSA listed and CE marked

Applications

• Automated test equipment (ATE) systems
• System integration and production testing
• Research and development power applications
• Manufacturing test benches and quality assurance
