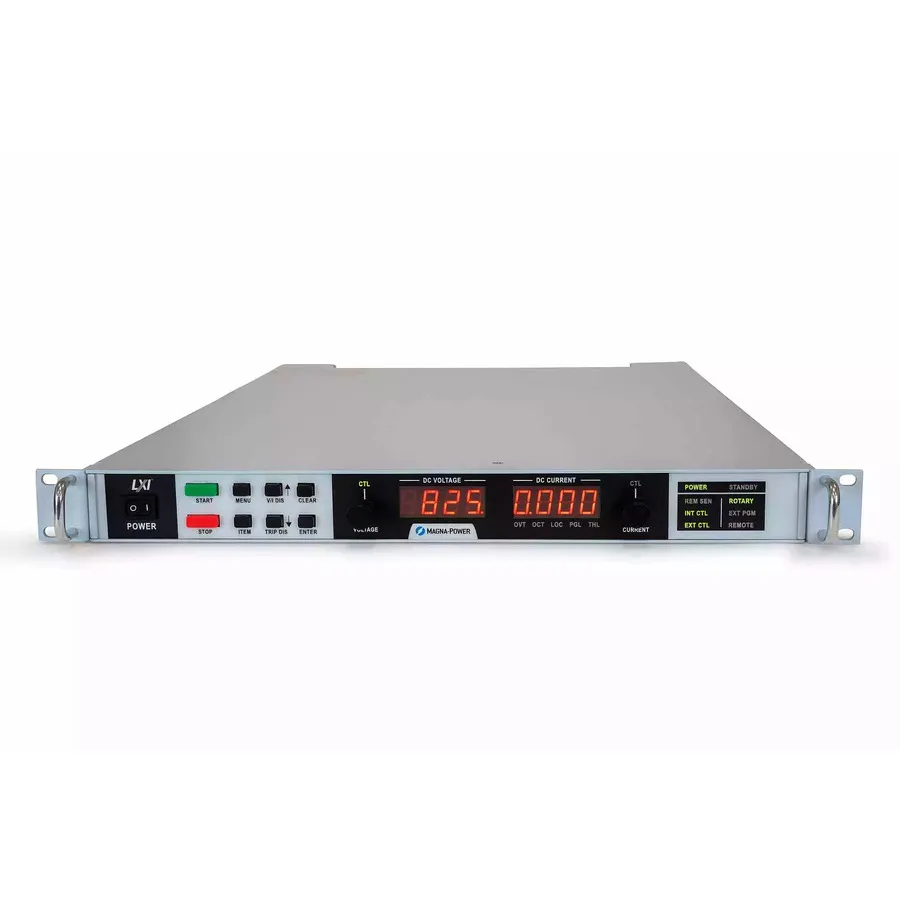

Magna Power SL100-100/240 DC Power Supply

Overview

The Magna Power SL100-100/240 is a programmable 1U rack-mount DC power supply delivering 100V DC at 100A, providing 10kW of output power. Part of the high-performance SL Series built on current-fed topology, it serves demanding automated test equipment and power systems requiring stable, remotely-controlled DC sources with precision measurement and extensive diagnostics. The unit operates reliably in ambient temperatures up to 50°C and is designed and manufactured in the USA.

Key Features

• 1U rack-mount (1.75" height) for high-power density integration in ATE
• Programmable via SCPI API with NI LabVIEW™ and IVI driver support
• Master-Slave functionality to parallel multiple units for extended voltage ranges
• Remote sensing for accurate voltage regulation at distant load terminals
• 37-pin external I/O with 0-10V analog control inputs
• Multiple interfaces: RS232, Ethernet, and optional GPIB (IEEE-488)
• Programmable over-voltage and over-current protection limits
• Fast transient response for dynamic load conditions
• Built-in diagnostics: AC phase loss, thermal conditions, and fuse status
• AC contactor for mechanical mains isolation in fault/standby modes
• External emergency stop via dedicated +5V interlock input
• High accuracy voltage and current measurements
• UL/CSA listed and CE Mark certified

Applications

• High-power Automated Test Equipment (ATE) requiring stable DC supplies
• Burn-in and characterization testing of power components and systems
• Multi-unit configurations for extended voltage or current capabilities
• Industrial DC power distribution systems with remote control
