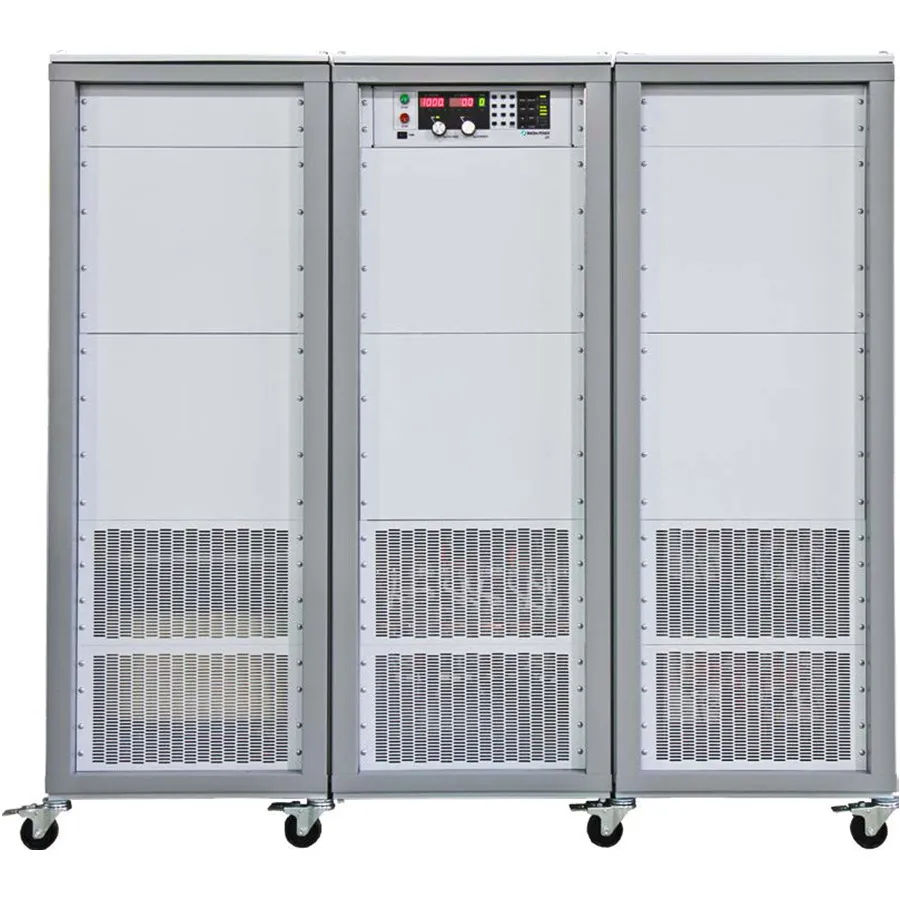

Magna Power MTD1000-250/480+HS+ISO+LXI DC Power Supply

Overview

The Magna Power MTD1000-250/480+HS+ISO+LXI is part of the MT Series of high-power DC power supplies, utilizing advanced IGBT technology with current-fed power processing. Designed for demanding industrial and laboratory applications, this 250 kW unit delivers reliable high-efficiency power with minimal switching components and maximum scalability for multi-megawatt systems via master-slave control with the UID47 device.

Key Features

• 1000 VDC output voltage with 250 ADC output current
• 250 kW power capacity with integrated 12-pulse harmonic neutralizer
• High-frequency IGBT design for fast transient response and low output ripple
• High-isolation output option for enhanced safety and application flexibility
• High slew rate option for rapid voltage and current changes
• LXI TCP/IP Ethernet connectivity for remote control and monitoring
• SCPI remote programming API with RS232 interface
• Programmable overvoltage and overcurrent protection limits
• Remote sense capability to compensate load-side voltage drops
• NI LabVIEW and IVI drivers for test system integration
• Extensive diagnostics: phase loss, thermal monitoring, fuse status detection
• Input AC breaker rated for full power protection

Applications

• Industrial power supply testing and development
• High-power component characterization and validation
• Electrochemical cell and battery testing
• Research environments requiring precise DC power control
