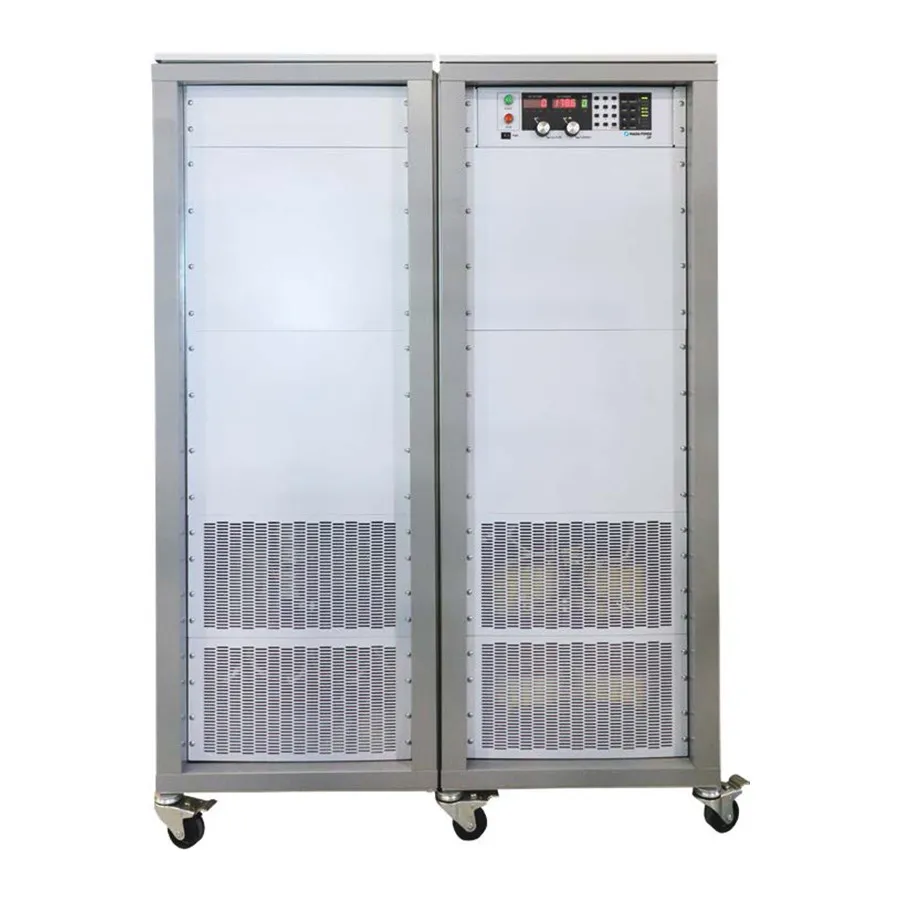

Magna Power MTD1000-150/480 DC Power Supply
Request a quote
Magna Power MTD1000-150/480 is a high-power programmable DC supply with 1000 V output, 150 A current, 150 kW power, modular design, and SCPI remote programming for industrial test applications.
Product details
| Model | MTD1000-150/480 |
| Manufacturer | Magna Power |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Magna Power MTD1000-150/480 is a heavy-duty floor-standing programmable DC power supply from the MT Series, designed for high-power industrial and laboratory testing applications. This unit delivers 1000 V output with 150 A current capacity at 150 kW power level, with expandable architecture supporting multi-megawatt configurations through master-slave control.
Key Features
- Output: 1000 Vdc at 150 A (150 kW)
- Modular design expandable into multi-megawatt systems
- SCPI remote programming API for automated control
- Programmable protection limits and high-accuracy measurements
- Integrated 12-pulse harmonic neutralizer for low THD
- Heavy-duty floor-standing enclosure
- Standard RS-232 interface (DB-9)
- Optional: IEEE-488 GPIB, LXI TCP/IP Ethernet, High-Isolation Output, High Slew Rate
- NI LabVIEW and IVI driver support
Applications
- High-power industrial equipment testing and validation
- Battery charging and energy storage system testing
- Power electronics and converter testing
- Burn-in and stress testing
- Research and development of power systems
- Manufacturing quality assurance
Specifications
| Voltage Range Selector | 1,000-1,999 |
| Output Voltage | 1 kV |
| Current Range Selector | 100-199 |
| Output Current | 150 A |
| Power Range Selector | 50,000-500,000 |
| Power Rating | 150 kW |
| Mounting Type | Floor-Standing |
| Input Voltage | 480 VAC |
| Series | MT Series |
| Display | Digital |
| Interface | RS-232 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Special Features | Expandable To Multi-Megawatts |
