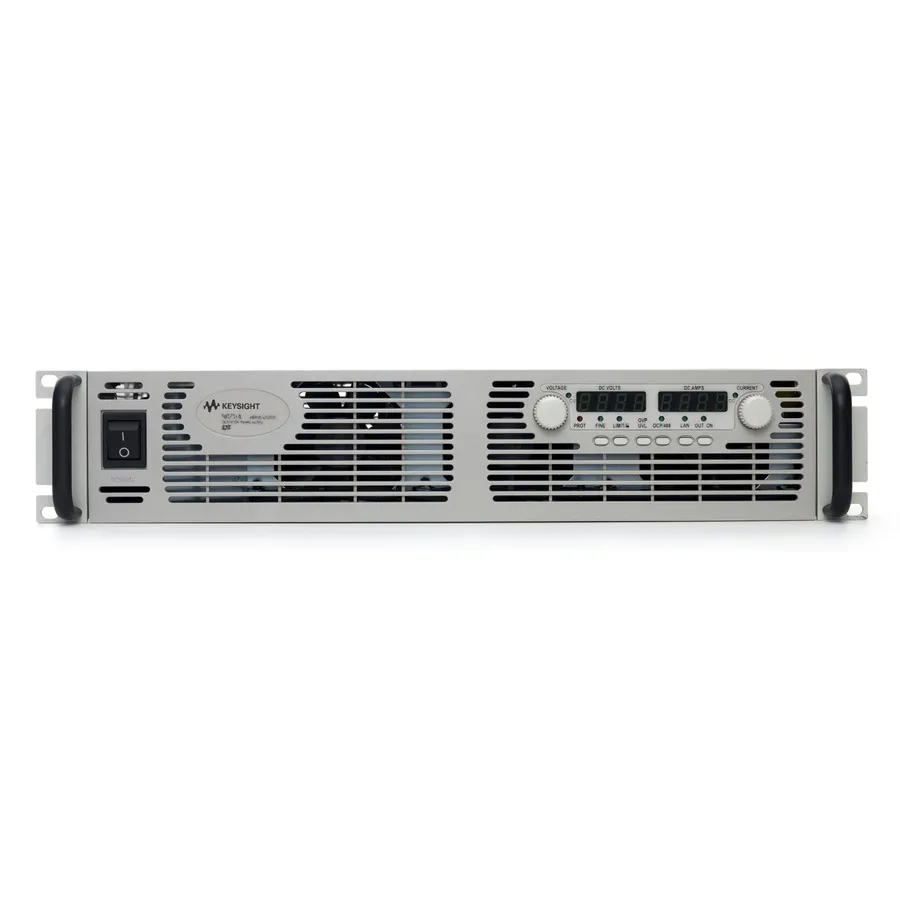

Keysight N8759A DC Power Supply
Request a quote
Keysight N8759A is a compact 100V/50A single-output DC power supply in a 2U package with low noise output and standard LAN, USB, and GPIB interfaces.
Product details
| Model | N8759A/N8751A-208/N8751A-861 |
| Manufacturer | Keysight |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8759A is a programmable DC power supply delivering 5,000W at 100V and 50A in a compact 2U package. Designed for use in automated test equipment (ATE) systems and laboratory applications, it offers extensive protection features and flexible connectivity options for remote monitoring and control.
Key Features
- Compact 2U form factor with high power density to save rack space
- Ultra-low noise output: as low as 8 mVrms for precision applications
- Comprehensive protection: overcurrent, overvoltage, under-voltage, and overtemperature
- Intuitive front panel with separate voltage and current adjustment knobs
- Multiple interface options: USB, LAN (LXI-Core), and GPIB for remote operation
- Front-to-back airflow allows direct stacking with other 19-inch instruments
- Parallel capability: connect up to 4 units for proportionally higher current output
- Flexible AC input: 208V, 230V, or 400V, 50/60Hz operation
Applications
- Automated test equipment (ATE) and automated manufacturing systems
- Device burn-in, stress testing, and qualification applications
- Laboratory and research power applications
- Production testing and high-current measurement systems
Specifications
| Voltage Range Selector | 100-199 |
| Output Voltage | 100 V |
| Current Range Selector | 50-99.9 |
| Output Current | 50 A |
| Power Range Selector | 5,000-9,999 |
| Power Rating | 5 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 208 VAC |
| Series | N8700 Series |
| Display | LED |
| Interface | GPIB,USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 2U |
| Special Features | Unterminated Power Cord |
