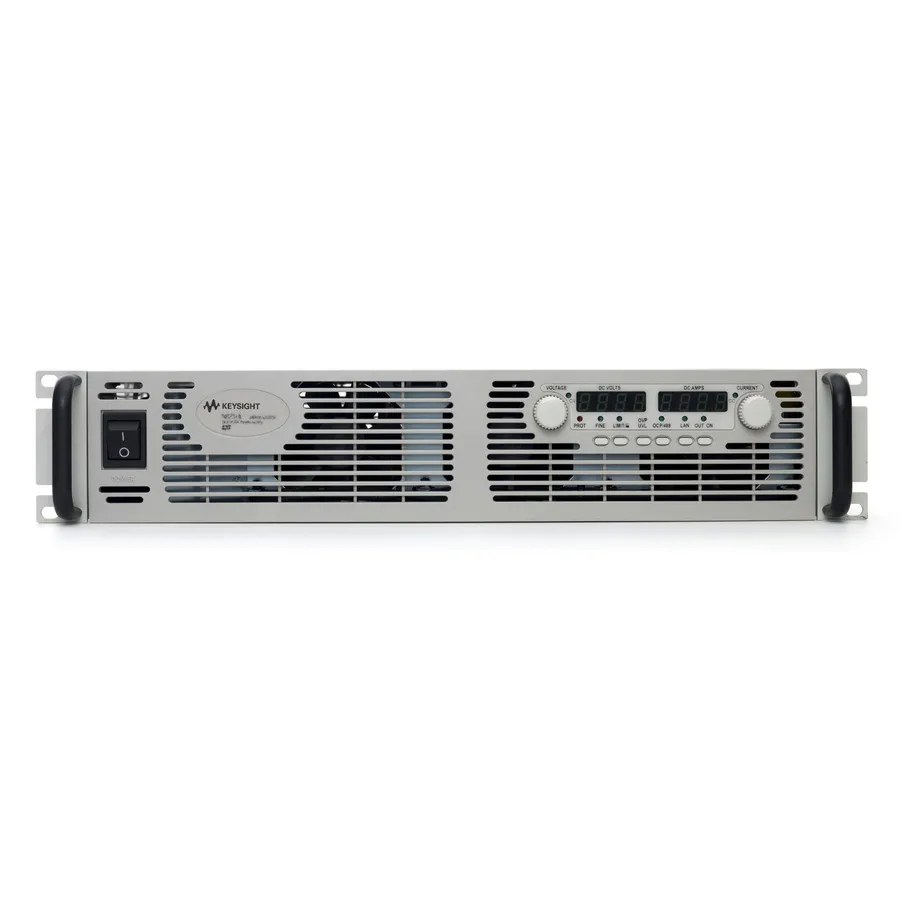

Keysight N8756A DC Power Supply

Overview

The Keysight N8756A with options N8751A-208 and N8751A-861 is a programmable DC power supply delivering 40V at 125A (5000W) in a compact 2U package, pre-configured with 190–240V, 3-phase AC input (50/60 Hz) and a 10 AWG, 4-wire, 8-foot power cord. Designed for automated test equipment (ATE) applications, it delivers high current with low noise and flexible connectivity.

Key Features

• Pre-configured with 190–240V, 3-phase AC input (50/60 Hz)
• Includes 10 AWG, 4-wire, 8-foot power cord (USA configuration)
• Compact 2U package with high-power density and front-to-back airflow
• Low noise output: 10 mVrms typical
• High precision: 0.025% + 30 mV voltage accuracy, 0.1% + 375 mA current accuracy
• Extensive protection: overcurrent, overvoltage, under-voltage, and overtemperature
• Simple front panel operation with separate voltage and current knobs
• LAN (LXI-Core), USB, and GPIB interfaces
• Connect up to 4 units in parallel for increased output current

Applications

• Automated test equipment (ATE) systems
• Laboratory testing and device characterization
• Burn-in testing and reliability verification
• High-current DC applications requiring precision control
