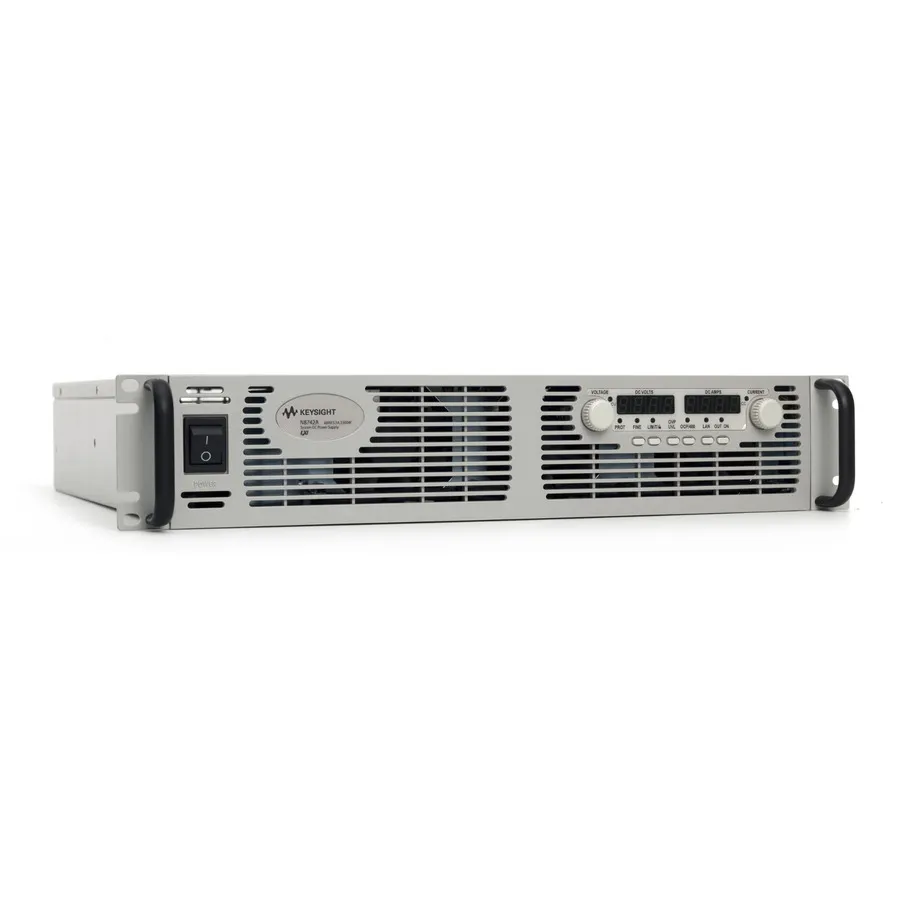

Keysight N8742A DC Power Supply

Overview

Keysight N8742A is a programmable, single-output DC power supply delivering 600V at 5.5A with 3300W power output. It features a compact 2U package designed for automated test equipment (ATE) and laboratory applications, providing high power density while saving valuable rack space with optimized front-to-back airflow.

Key Features

• Single output: 600V, 5.5A, 3300W power rating
• Compact 2U package with high power density
• Programming accuracy: 0.05% + 300mV (voltage), 0.1% + 11mA (current)
• Output ripple and noise: 500mV peak-to-peak, 120mV RMS
• Built-in voltage and current measurement
• Full protection from over-voltage and over-current conditions
• Front-panel operation with rotary knobs and buttons for easy control
• Remote access and control via built-in web server
• LAN, USB, and GPIB interfaces with IVI-COM drivers and SCPI support
• Flexible configuration: connect units in parallel or series for higher current or voltage
• Analog programming and monitoring capabilities
• Front-to-back airflow allows stacking without additional clearance requirements

Applications

• Automated test equipment (ATE) systems
• Laboratory and research applications
• High-voltage device testing
• Manufacturing and production test environments

Included Accessories

• Certificate of calibration
