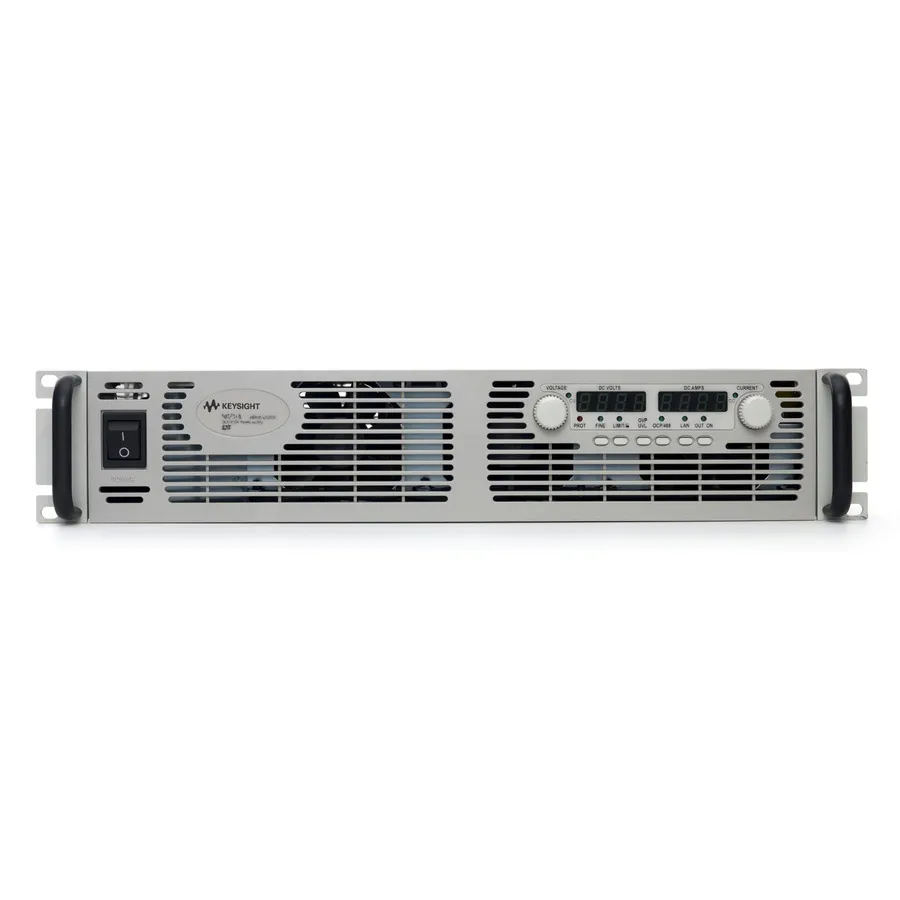

Keysight N8741A DC Power Supply
Request a quote
Keysight N8741A is a 300V, 11A single-output programmable DC power supply with 3.3kW output, flexible AC input, and USB, LAN, GPIB interfaces.
Product details
| Model | N8741A/N8731A-208/N8731A-861 |
| Manufacturer | Keysight |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8741A is a single-output programmable DC power supply with flexible AC input configuration options, delivering 300V and 11A (3.3kW) in a compact 2U rack-mount package. It features remote web-based control via built-in web server, and standard connectivity via LAN, USB, and GPIB for integration into automated test equipment systems.
Key Features
- 300V/11A output with 3.3kW power rating
- Voltage programming accuracy: 0.05% + 150 mV
- Current programming accuracy: 0.1% + 22 mA
- Output ripple and noise: 300 mV p-p CV, 100 mV RMS CV
- Built-in voltage and current measurement
- Full protection from overvoltage and overcurrent conditions
- Compact high-density 2U package with front-to-back airflow
- LAN, USB, and GPIB interfaces for remote monitoring and control
- Built-in web server for browser-based remote access and operation
- Flexible AC input configuration options (208V or 230V available)
- Analog programming and monitoring capability
- Front-panel operation with rotary knobs and buttons
- Series/parallel connection capability for extended range applications
Applications
- Automated test equipment (ATE) power applications
- Production testing and system integration
- Laboratory research and development
- Remote monitoring and control applications
Included Accessories
- Certificate of calibration
Specifications
| Voltage Range Selector | 300-499 |
| Output Voltage | 300 V |
| Current Range Selector | 10-19.9 |
| Output Current | 11 A |
| Power Range Selector | 2,500-4,999 |
| Power Rating | 3.3 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 208 VAC |
| Series | N8700 Series |
| Display | LED |
| Interface | GPIB,USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 2U |
| Special Features | Unterminated Power Cord |
