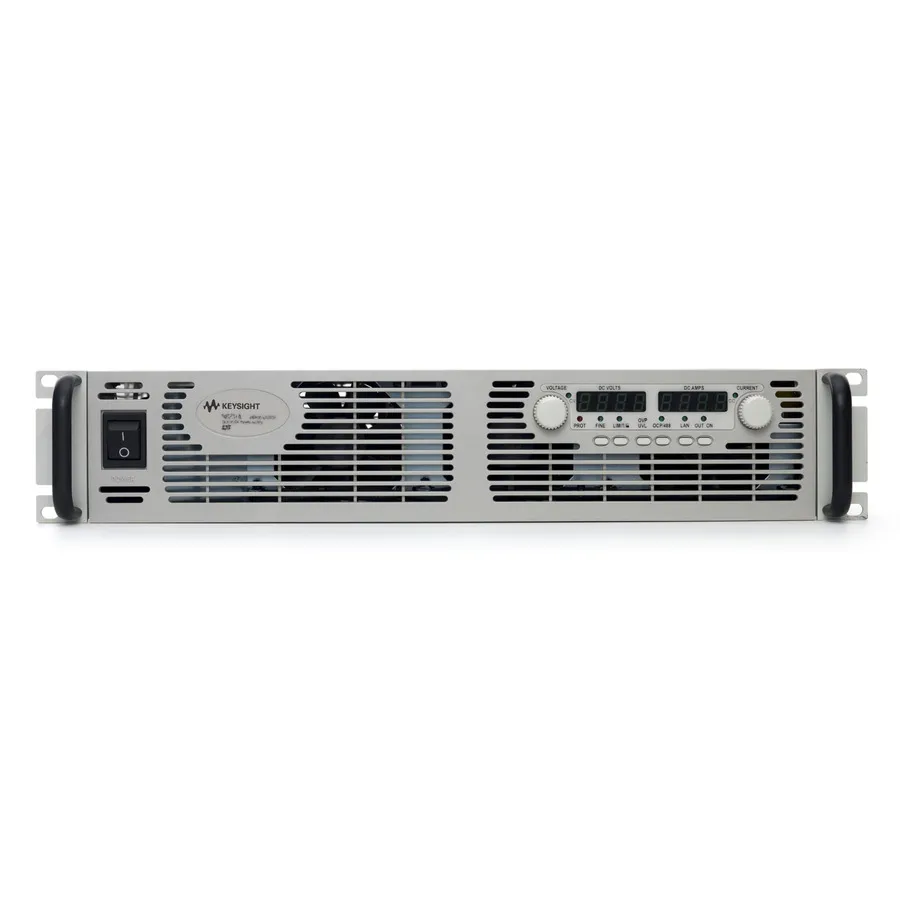

Keysight N8739A/N8731A-208/N8731A-861 DC Power Supply

Overview

The Keysight N8739A is a single-output DC power supply delivering 100V at 33A (3300W) in a compact 2U package. Part of the N8700 series, it combines high power density with low noise output and comprehensive protection features, making it ideal for automated test equipment and laboratory applications requiring stable DC power.

Key Features

• Single output: 100V, 33A, 3300W
• Programming accuracy: voltage 0.05% + 50mV, current 0.1% + 66mA
• Low noise output: 100mV p-p, 25mV rms in CV mode
• Compact 2U high-density package with front-to-back airflow
• Built-in voltage and current measurement
• Extensive device protection: overcurrent, overvoltage, and under-voltage
• LAN, USB, and GPIB interfaces standard
• Flexible configuration: parallel connection of up to 4 units
• Front-panel operation with separate voltage and current knobs
• Remote access and control via built-in web server
• Analog programming and monitoring capabilities
• IVI-COM drivers with SCPI command support

Applications

• Automated test equipment (ATE) systems
• Laboratory power requirements
• High-current DC power applications
• Device burn-in and production testing
• Electronics manufacturing and research

Included Accessories

• Certificate of calibration
