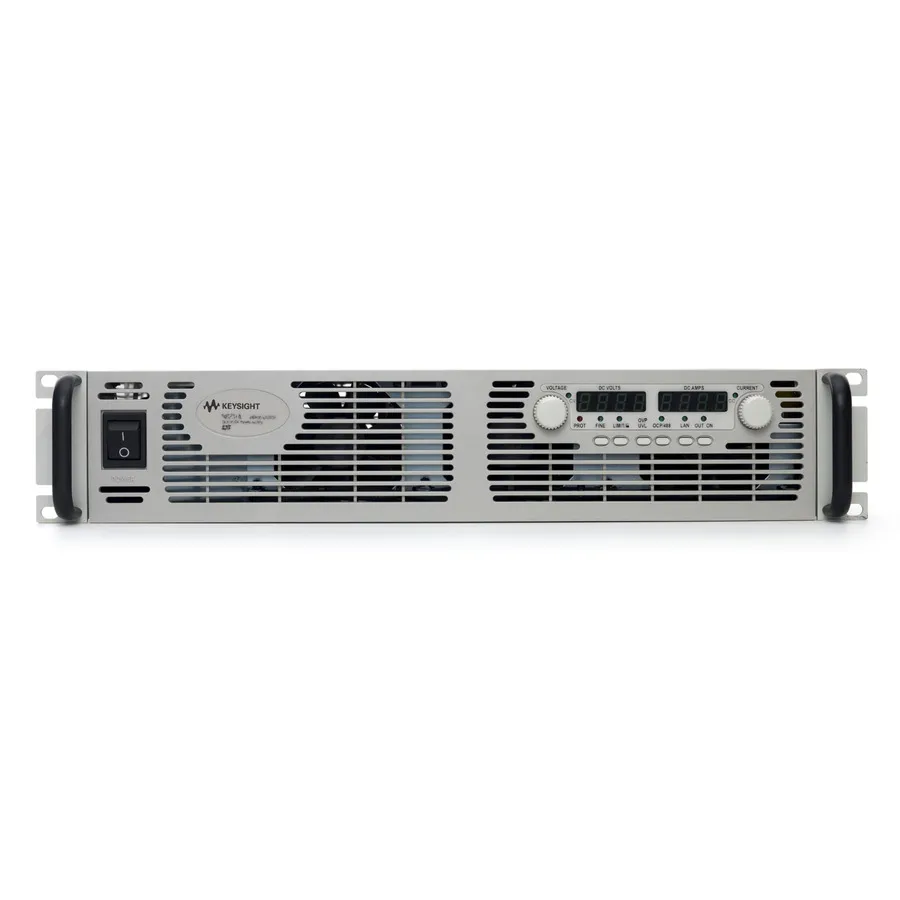

Keysight N8738A/N8731A-230/N8731A-831 DC Power Supply

Overview

The Keysight N8738A is a single-output DC power supply delivering 80V at 42A (3360W) in a compact 2U package. Part of the N8700 series, it provides stable, low-noise power output with precision measurement capabilities and multi-interface support for laboratory and automated test equipment applications.

Key Features

• Single output: 80V, 42A, 3360W
• Programming accuracy: voltage 0.05% + 40mV, current 0.1% + 84mA
• Low noise output: 80mV p-p, 25mV rms in CV mode
• Compact 2U high-density package with front-to-back airflow
• Built-in voltage and current measurement
• Full protection: over-voltage, over-current, and under-voltage
• LAN, USB, and GPIB interfaces standard
• Flexible configuration: parallel connection of up to 4 units
• Front-panel operation with rotary knobs and separate voltage/current controls
• Remote access and control via built-in web server
• Analog programming and monitoring via external resistance/voltage
• IVI-COM drivers with SCPI command support

Applications

• Automated test equipment (ATE) systems
• Laboratory power requirements
• High-current DC power applications
• Device burn-in and production testing
• Electronics manufacturing and research

Included Accessories

• Certificate of calibration
