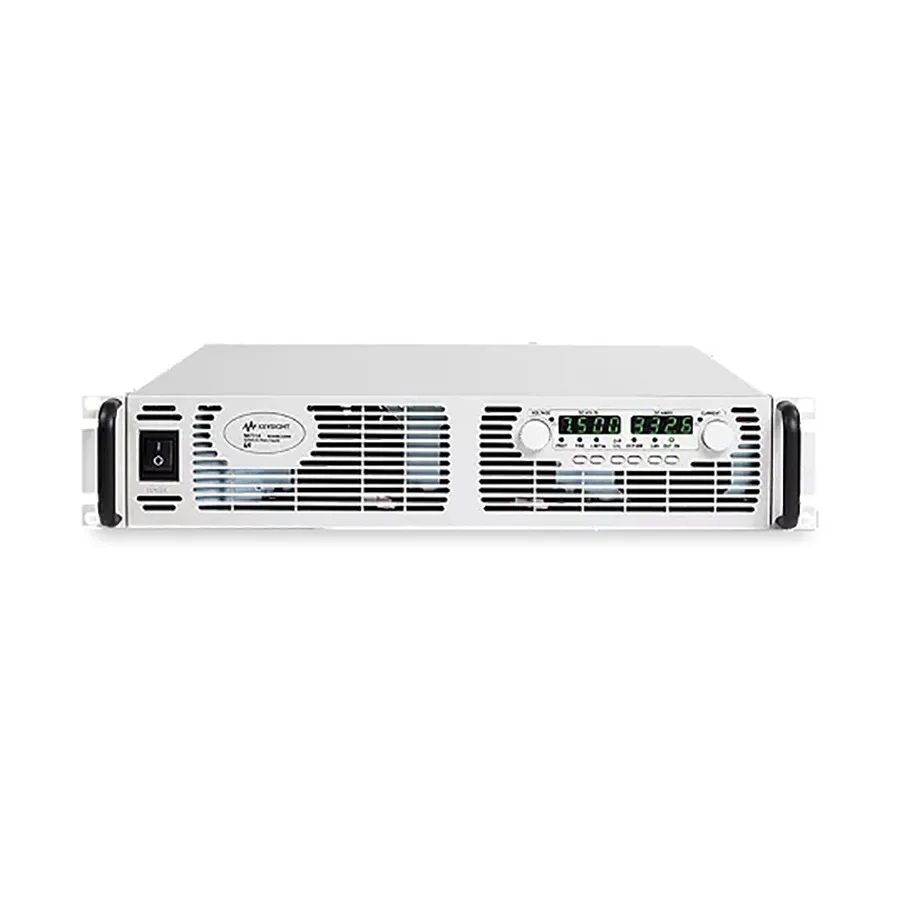

Keysight N8738A DC Power Supply
Request a quote
Keysight N8738A is an 80V, 42A programmable DC power supply with 0.05% voltage accuracy, 25 mV rms noise, and compact 2U package.
Product details
| Model | N8738A/208/861 |
| Manufacturer | Keysight |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8738A is a high-power programmable DC supply delivering 80V at 42A with 3.36 kW output. Built for demanding automated test equipment and laboratory environments, it offers excellent noise performance, precise programming accuracy, and modern connectivity for seamless integration into test systems.
Key Features
- 80V, 42A output with 3360W power rating
- Low noise output: 25 mV rms (80 mV peak-to-peak)
- Programming accuracy: 0.05% voltage + 40 mV, 0.1% current + 84 mA
- LAN, USB, and GPIB interfaces for remote control
- Compact 2U package with front-to-back airflow for easy rack mounting
- Full protection from overcurrent, overvoltage, and overtemperature
- Parallel connection capability for higher current output
- Built-in voltage and current measurement
- Web browser-based remote access and control
- Analog programming and monitoring
- IVI-COM drivers with SCPI command support
Applications
- Automated test equipment (ATE) systems
- Laboratory and research power supply
- Component testing and validation
- High-current DC applications
Specifications
| Voltage Range Selector | 50-99.9 |
| Output Voltage | 80 V |
| Current Range Selector | 30-49.9 |
| Output Current | 42 A |
| Power Range Selector | 2,500-4,999 |
| Power Rating | 3.36 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 190-240 VAC |
| Series | N8700 Series |
| Display | LED |
| Interface | GPIB,USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 2U |
| Special Features | 3P Unterminated Line Cord |
