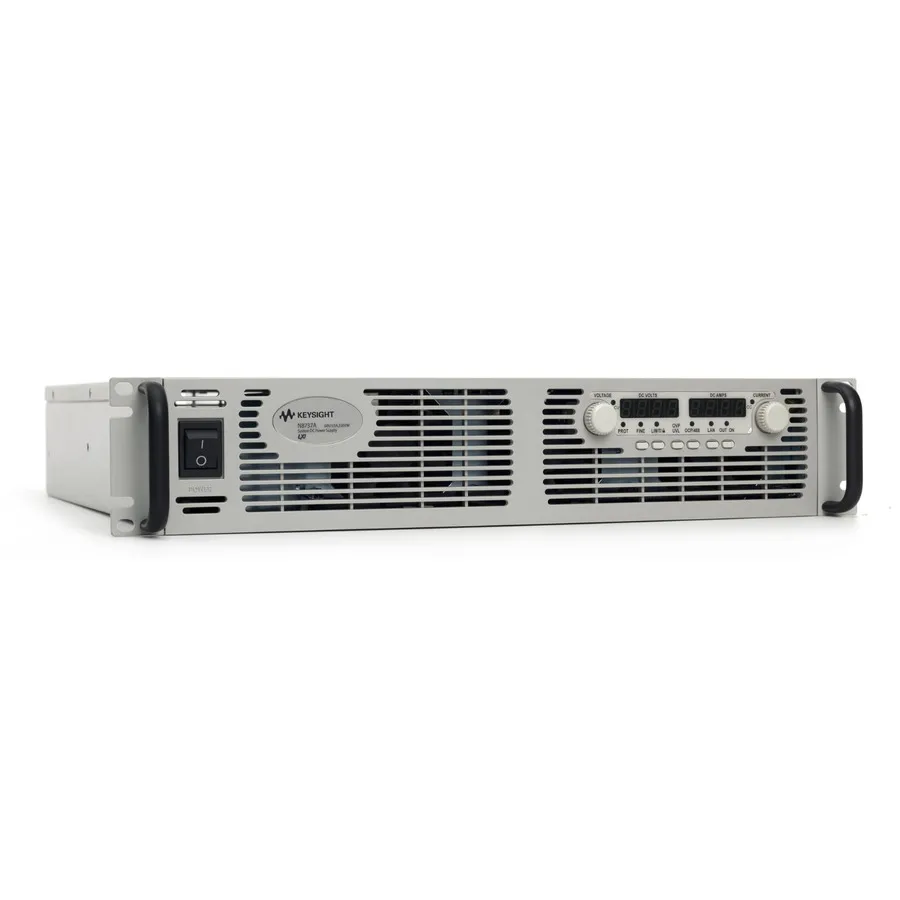

Keysight N8737A DC Power Supply
Request a quote
Keysight N8737A is a 60V, 55A programmable DC power supply with 0.05% voltage accuracy, 8 mV rms noise, and compact 2U package.
Product details
| Model | N8737A/N8731A-230/N8731A-831 |
| Manufacturer | Keysight |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8737A is a programmable DC power supply delivering 60V at 55A with 3.3 kW output power. Designed for automated test equipment and laboratory applications, it provides high current capability with exceptionally low noise output and built-in measurement functionality for precise voltage and current monitoring.
Key Features
- 60V, 55A output with 3300W power rating
- Low noise output: 8 mV rms (60 mV peak-to-peak)
- Programming accuracy: 0.05% voltage + 30 mV, 0.1% current + 110 mA
- LAN, USB, and GPIB interfaces for remote control
- Compact 2U package with space-saving design
- Full overcurrent and overvoltage protection
- Parallel and series connection capability for extended power
- Built-in voltage and current measurement
- Web browser-based remote access and control
- Analog programming and monitoring
- IVI-COM drivers with SCPI command support
Applications
- Automated test equipment (ATE)
- Laboratory power supply and testing
- Component validation and burn-in testing
- High-current DC applications
Specifications
| Voltage Range Selector | 50-99.9 |
| Output Voltage | 60 V |
| Current Range Selector | 50-99.9 |
| Output Current | 55 A |
| Power Range Selector | 2,500-4,999 |
| Power Rating | 3.3 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 230 VAC |
| Series | N8700 Series |
| Display | LED |
| Interface | GPIB,USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 2U |
| Special Features | Unterminated Power Cord |
