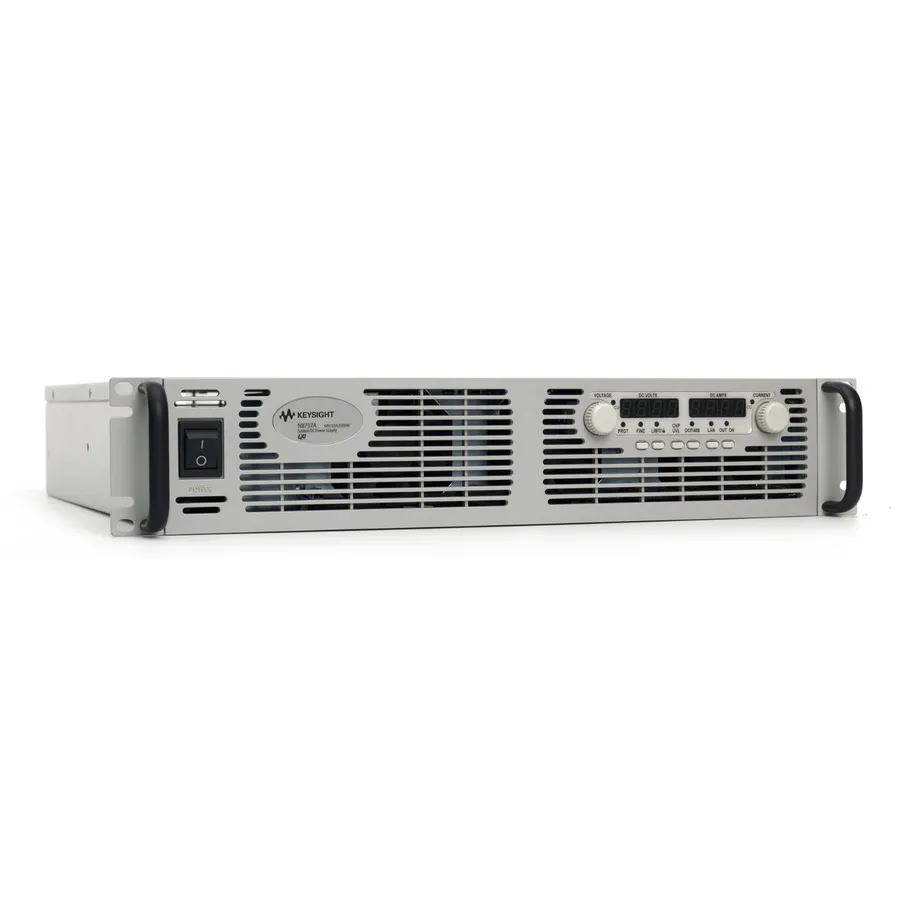

Keysight N8737A DC Power Supply
Request a quote
Keysight N8737A — 60V, 55A DC power supply with 3-phase AC input, 3300W in compact 2U package with low noise output.
Product details
| Model | N8737A/208/861 |
| Manufacturer | Keysight |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8737A is a programmable 60V, 55A DC power supply delivering 3300W in a compact 2U package. This configuration includes 3-phase AC input (208V to 240V, 50/60 Hz) and features low noise output (8 mV RMS), front-to-back airflow for easy rack mounting, and comprehensive protection including overvoltage, overcurrent, and overtemperature safeguards.
Key Features
- 60V output, 55A current capacity, 3300W power
- 3-phase AC input: 208–240V, 50/60 Hz
- Low output noise: 8 mV RMS (60 mV p-p)
- Programming accuracy: 0.05% + 30 mV (voltage), 0.1% + 110 mA (current)
- Compact 2U package with front-to-back airflow for easy rack mounting
- LAN (LXI-Core), USB, and GPIB interfaces with web server for remote access
- Simple front-panel operation with separate knobs for voltage and current
- Comprehensive protection: overvoltage, overcurrent, and overtemperature
- Connect up to 4 units in parallel for higher current
- Standard IVI-COM drivers with SCPI support
Applications
- Automated test equipment (ATE) requiring stable, programmable power sources
- Research and development laboratories
- Industrial power applications
- Rack-mounted test systems with 3-phase AC power availability
Specifications
| Mounting Type | Rack Mount |
| Series | N8700 Series |
| Number of Outputs | Single Output |
| Programmable | Yes |
