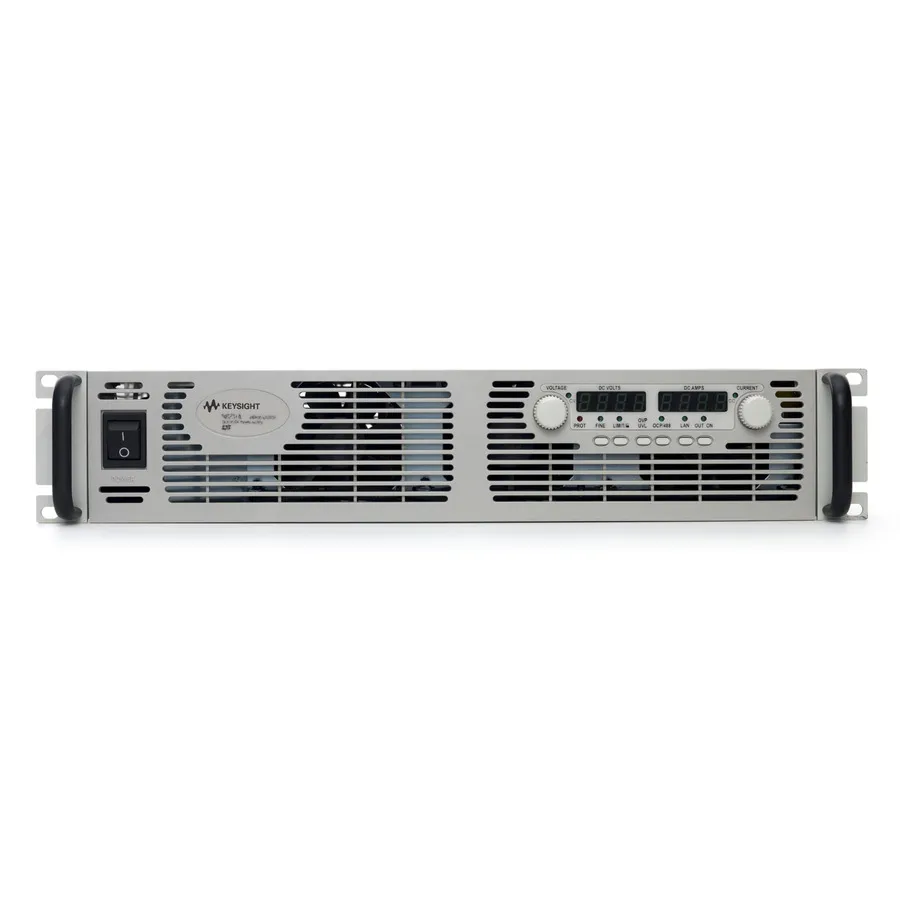

Keysight N8736A DC Power Supply

Overview

The Keysight N8736A is a programmable 40V, 85A DC power supply delivering 3400W in a compact 2U package. Designed for automated test equipment and power applications, it offers low noise output (8 mV RMS), remote control via LAN/USB/GPIB, and flexible configuration for connecting multiple units in series or parallel.

Key Features

• 40V output, 85A current capacity, 3400W power
• Low output noise: 8 mV RMS (60 mV p-p)
• High programming accuracy: 0.05% + 20 mV (voltage), 0.1% + 170 mA (current)
• Compact 2U package with front-to-back airflow for easy rack mounting
• Built-in voltage and current measurement
• Comprehensive protection: overvoltage, overcurrent, undervoltage, and over-temperature
• LAN (LXI-Core), USB, and GPIB interfaces with web server for remote control
• Separate front-panel knobs for coarse and fine voltage and current adjustments
• Flexible configuration: connect up to 4 units in parallel for higher current or 2 units in series for higher voltage
• Supports SCPI and IVI-COM drivers

Applications

• Automated test equipment (ATE) requiring high current sources
• Research and development test laboratories
• Systems requiring remote monitoring and control via network interfaces
• Industrial testing and power applications

Included Accessories

• Certificate of calibration
