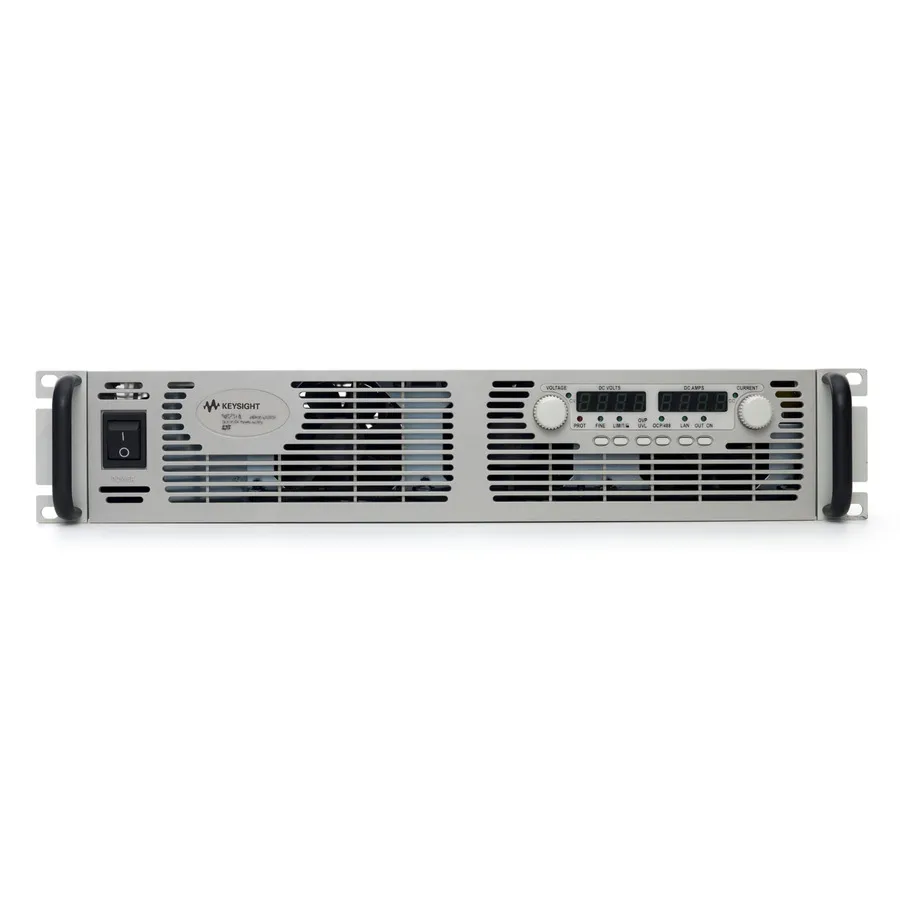

Keysight N8736A DC Power Supply
Request a quote
Keysight N8736A is a 2U programmable DC power supply with 40V, 85A output, 3.4kW power, remote web access, and 208V three-phase AC input options.
Product details
| Model | N8736A/N8731A-208/N8731A-861 |
| Manufacturer | Keysight |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8736A is a programmable single-output DC power supply in the N8700 series, delivering 40V at 85A with 3.4kW output power. Its compact 2U design features front-to-back airflow for simplified rack mounting and supports parallel connection of up to four units for increased output current.
Key Features
- Compact 2U high-power density package with front-to-back airflow
- Output: 40V, 85A, 3.4kW with ultra-low noise (8mVrms)
- Simple front-panel operation with separate knobs for voltage and current
- Extensive protection: over-current, over-voltage, under-voltage, and over-temperature
- Modern interfaces: USB, LAN (LXI-Core), GPIB
- Flexible AC input: 208V three-phase configuration
- Built-in voltage and current measurement
- Front-panel lock to prevent accidental parameter changes
- Remote access and control via built-in web server
- Support for parallel and series connection for extended power and voltage
- Analog programming and monitoring
- Standard IVI-COM drivers with SCPI support
Applications
- Automated Test Equipment (ATE) systems
- Electronic device testing and validation
- Research and development labs
- Manufacturing production testing
Included Accessories
- Certificate of calibration
- Unterminated three-phase power cord for 208V AC
Specifications
| Voltage Range Selector | 30-49.9 |
| Output Voltage | 30 V |
| Current Range Selector | 100-199 |
| Output Current | 110 A |
| Power Range Selector | 2,500-4,999 |
| Power Rating | 3.3 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 208 VAC |
| Series | N8700 Series |
| Display | LED |
| Interface | GPIB,USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 2U |
| Special Features | Unterminated Power Cord |
