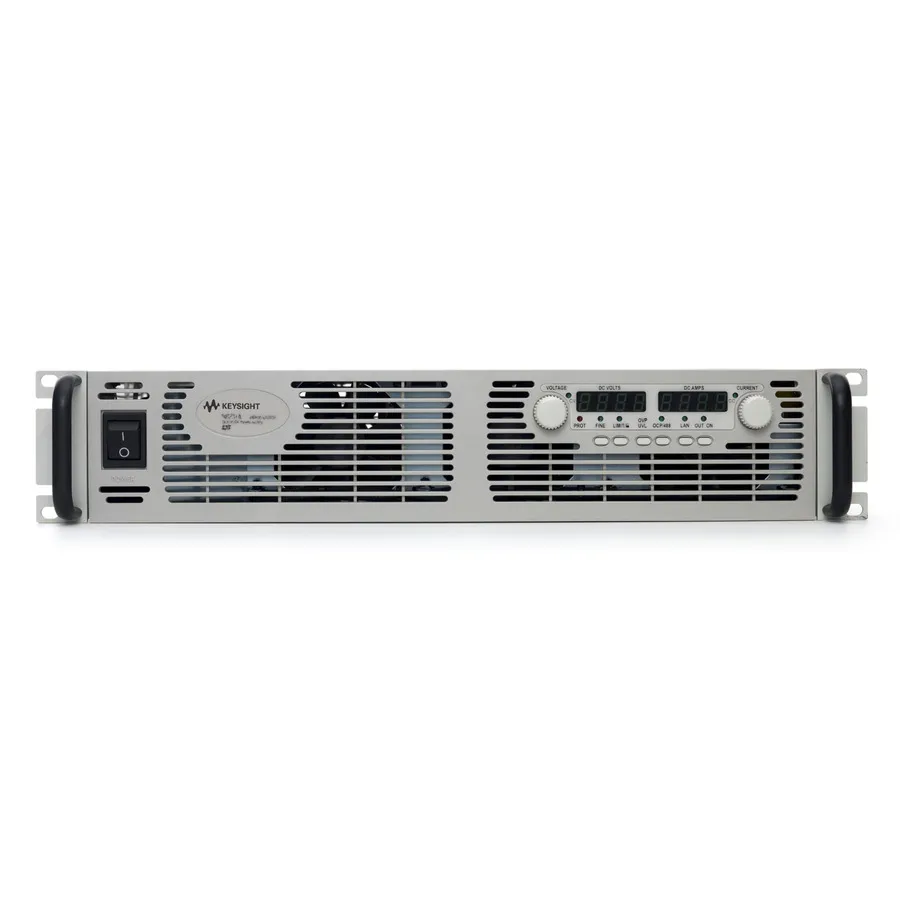

Keysight N8735A DC Power Supply
Request a quote
Keysight N8735A is a 2U programmable DC power supply with 30V, 110A output, 3.3kW power, ultra-low noise (8mVrms), and built-in measurement and protection.
Product details
| Model | N8735A/N8731A-230/N8731A-831 |
| Manufacturer | Keysight |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8735A is a programmable DC power supply in the N8700 series, delivering 30V at 110A with 3.3kW output power. Housed in a compact 2U package, it features front-to-back airflow for simplified rack mounting and can be paralleled with up to four identical units for increased output current.
Key Features
- Compact 2U high-power density package — saves rack space with front-to-back airflow
- Output: 30V, 110A, 3.3kW with low noise (8mVrms)
- Programming accuracy: voltage 0.05% + 15mV, current 0.1% + 220mA
- Built-in voltage and current measurement
- Multiple interface options: LAN (LXI), USB, GPIB
- Flexible input configuration: 208–240V AC (single or three phase) via options
- Full protection: over-voltage, over-current, and under-voltage
- Front-panel operation with rotary knobs and buttons; lockable controls
- Remote access via built-in web server
- Parallel and series connection capability for extended power and voltage
- Analog programming and monitoring capability
Applications
- Automated Test Equipment (ATE) systems
- Electronic device testing and validation
- Research and development labs
- Manufacturing and production testing
Included Accessories
- Certificate of calibration
- AC input cord (option-dependent)
Specifications
| Voltage Range Selector | 30-49.9 |
| Output Voltage | 30 V |
| Current Range Selector | 100-199 |
| Output Current | 110 A |
| Power Range Selector | 2,500-4,999 |
| Power Rating | 3.3 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 230 VAC |
| Series | N8700 Series |
| Display | LED |
| Interface | GPIB,USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 2U |
| Special Features | Unterminated Power Cord |
