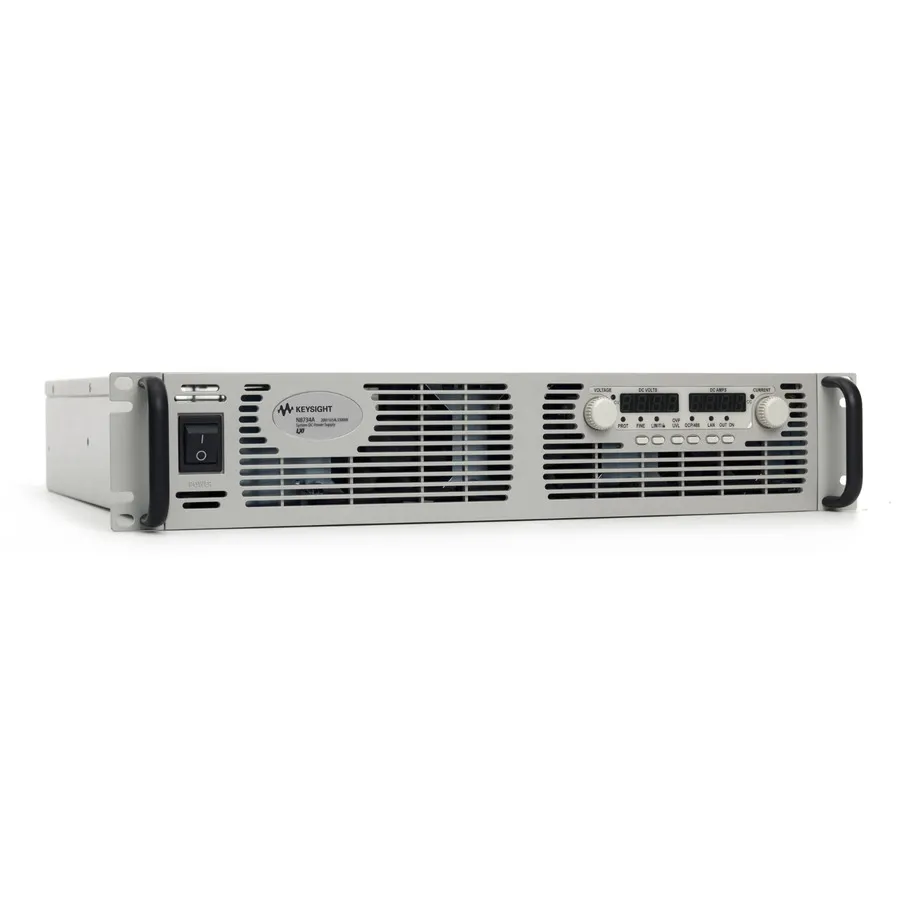

Keysight N8734A DC Power Supply
Request a quote
Keysight N8734A is a compact 3.3 kW DC power supply with 20V/165A output, 0.05% accuracy, and LAN/USB/GPIB interfaces for test and ATE applications.
Product details
| Model | N8734A/N8731A-208/N8731A-861 |
| Manufacturer | Keysight |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8734A is a programmable single-output DC power supply delivering 20V at 165A with 3.3 kW output power. Part of the N8700 series, it combines a compact 2U rack-mount form factor with low-noise, high-density design suitable for automated test equipment (ATE) and laboratory applications.
Key Features
- Output: 20V, 165A, 3300W
- Programming accuracy: 0.05% + 10mV voltage, 0.1% + 330mA current
- Low noise output: 8mV rms, 60mV peak-to-peak
- Compact 2U package with front-to-back airflow for flexible rack mounting
- Multiple communication interfaces: LAN (LXI), USB, GPIB, and analog programming
- Built-in voltage and current measurement
- Complete protection: overvoltage, overcurrent, and overtemperature
- Flexible configuration: stack up to 4 units in parallel or 2 units in series for higher output
Applications
- Automated test equipment (ATE) and test stands
- Component and subsystem testing
- Battery charging and conditioning
- Laboratory power delivery applications
Included Accessories
- Certificate of calibration
Specifications
| Voltage Range Selector | 20-29.9 |
| Output Voltage | 20 V |
| Current Range Selector | 100-199 |
| Output Current | 165 A |
| Power Range Selector | 2,500-4,999 |
| Power Rating | 3.3 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 208 VAC |
| Series | N8700 Series |
| Display | LED |
| Interface | GPIB,USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 2U |
| Special Features | Unterminated Power Cord |
