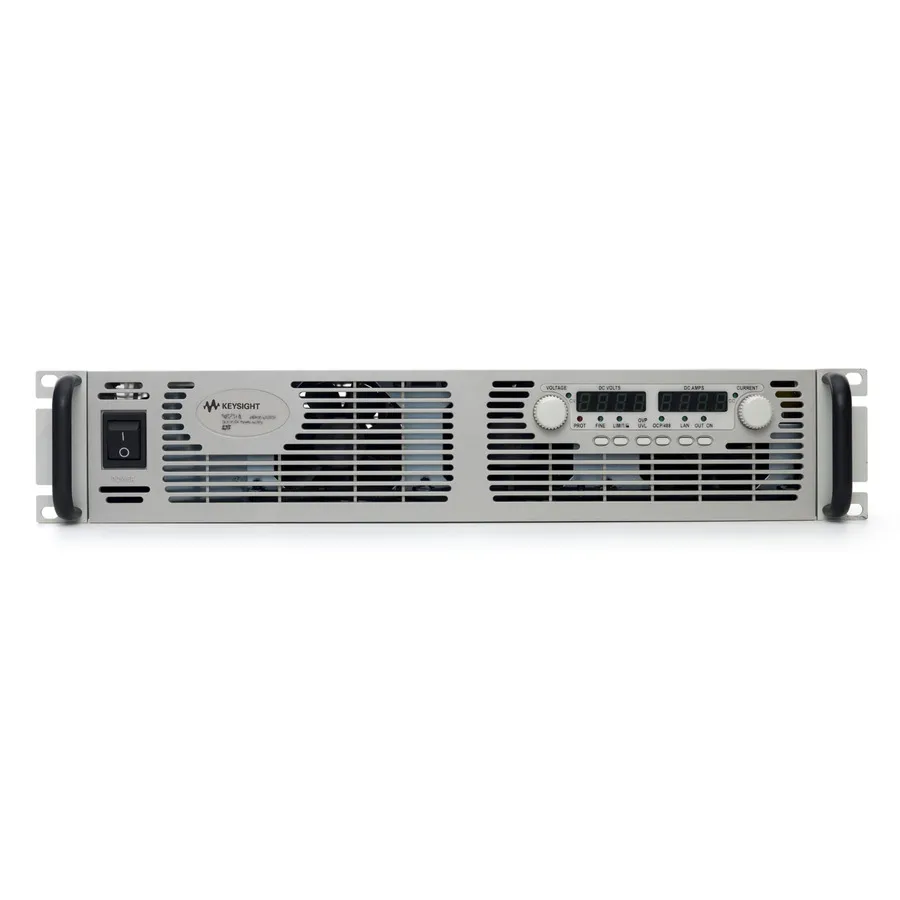

Keysight N8732A DC Power Supply
Request a quote
Keysight N8732A — single-phase 2U DC power supply with 10V, 330A output (3.3kW), low noise, and included USA power cord for standard AC inputs.
Product details
| Model | N8732A/N8731A-230/N8731A-831 |
| Manufacturer | Keysight |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8732A with single-phase input is a compact DC power supply ideal for standard North American electrical infrastructure. Configured for 190-240V single-phase AC input with a USA power cord, it delivers 10V at 330A (3.3kW) in a space-saving 2U package. The unit is ready for immediate installation in automated test environments and manufacturing facilities.
Key Features
- Compact 2U high-density package for rack mounting
- DC Output: 10V, 330A, 3300W
- Single-phase AC input: 190-240V, 50/60Hz
- Low noise output: 8mV rms, 60mV peak-to-peak
- Programming accuracy: Voltage 0.05% + 5mV, Current 0.1% + 660mA
- Built-in voltage and current measurement
- Multiple interfaces: LAN, USB, GPIB for versatile control
- Full protection: overvoltage, overcurrent, and thermal safeguards
- Front-panel operation with independent adjustment knobs
- Remote web server access and control capability
- Parallel connection: up to 4 units for higher current
- Series connection: up to 2 units for higher voltage
Applications
- Automated test equipment (ATE) systems
- Production line testing and component validation
- High-current DC power requirements in manufacturing
- Electronics testing and quality assurance
Included Accessories
- USA power cord, 10 AWG, 3-wire, 8 feet
- Certificate of calibration
Specifications
| Voltage Range Selector | 1-19.9 |
| Output Voltage | 10 V |
| Current Range Selector | 200-499 |
| Output Current | 330 A |
| Power Range Selector | 2,500-4,999 |
| Power Rating | 3.3 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 230 VAC |
| Series | N8700 Series |
| Display | LED |
| Interface | GPIB,USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 2U |
| Special Features | Unterminated Power Cord |
