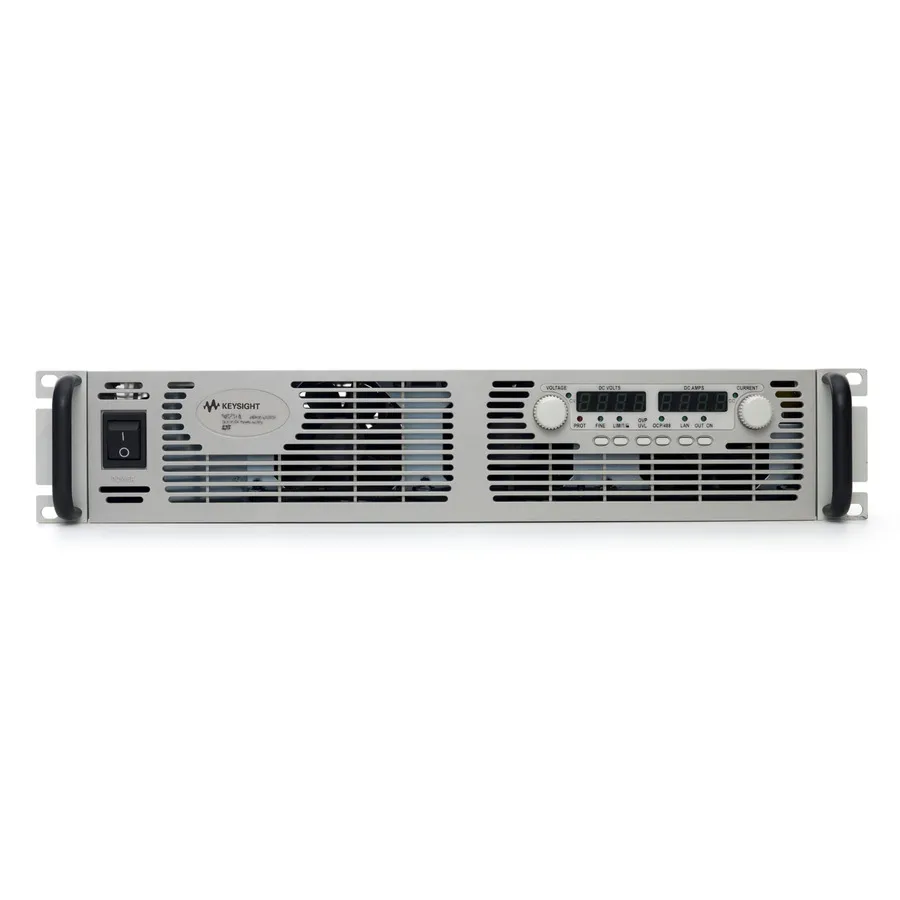

Keysight N8732A DC Power Supply
Request a quote
Keysight N8732A — 3-phase 2U DC power supply with 10V, 330A output (3.3kW), low noise, and comprehensive protection for ATE rack systems.
Product details
| Model | N8732A/N8731A-208/N8731A-861 |
| Manufacturer | Keysight |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N8732A with 3-phase input option is a high-performance DC power supply designed for demanding automated test environments. Configured for 208V 3-phase AC input, it delivers 10V at 330A (3.3kW) in a compact 2U footprint. The flexible power configuration supports diverse electrical infrastructure requirements in manufacturing and test facilities.
Key Features
- Compact 2U high-density package for efficient rack mounting
- DC Output: 10V, 330A, 3300W
- 3-phase AC input: 208V, 50/60Hz
- Low noise output: 8mV rms, 60mV peak-to-peak
- Programming accuracy: Voltage 0.05% + 5mV, Current 0.1% + 660mA
- Built-in voltage and current measurement capability
- Multiple interfaces: LAN, USB, GPIB for remote and local control
- Full protection: overvoltage, overcurrent, and thermal safeguards
- Easy front-panel operation with independent control knobs
- Flexible configuration: parallel or series stacking support
- Analog programming and monitoring options
- Standard IVI-COM drivers with SCPI command support
Applications
- Automated test equipment (ATE) systems in manufacturing
- High-current DC power for production line testing
- Component testing and validation in industrial settings
- Semiconductor manufacturing and quality control
Included Accessories
- Unterminated power cord for 208V 3-phase AC input
- Certificate of calibration
Specifications
| Voltage Range Selector | 1-19.9 |
| Output Voltage | 10 V |
| Current Range Selector | 200-499 |
| Output Current | 330 A |
| Power Range Selector | 2,500-4,999 |
| Power Rating | 3.3 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 190-240 VAC |
| Series | N8700 Series |
| Alternate Product Number | N8732A/208/861 |
| Display | LED |
| Interface | GPIB,USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 2U |
| Special Features | 3P Unterminated Line Cord |
