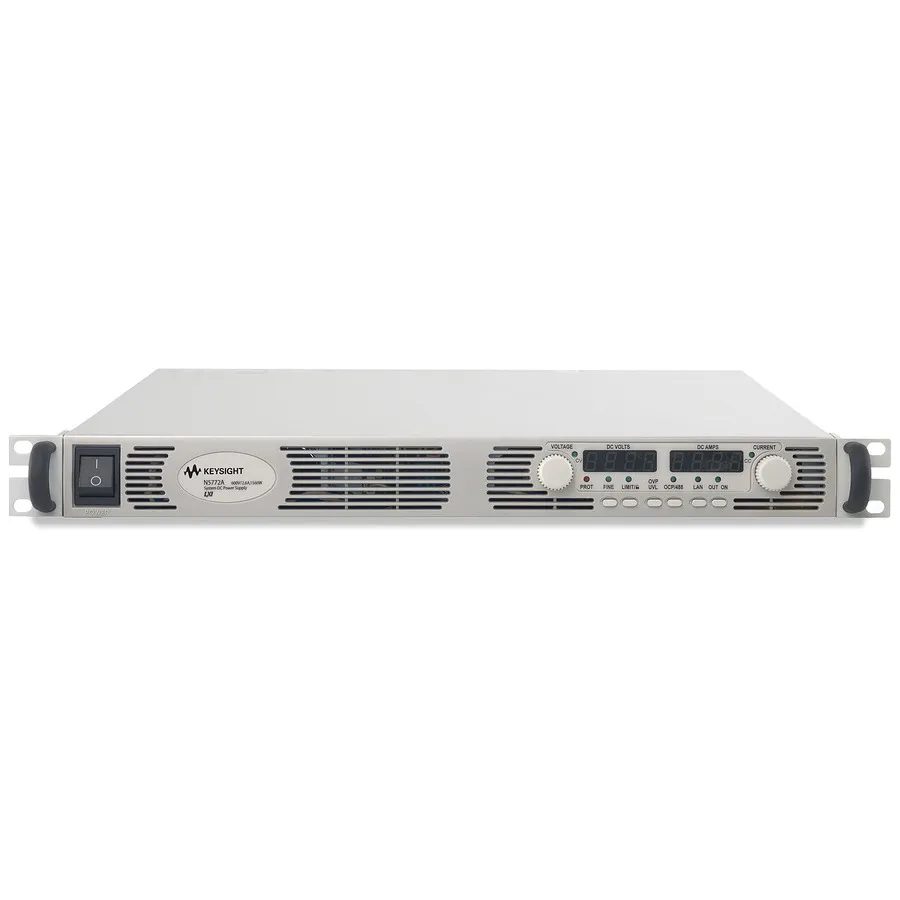

Keysight N5772A/861 Single Output DC Power Supply

Overview

The Keysight N5772A/861 is a single-output, 0-600V, 0-2.6A, 1560W DC power supply featuring universal AC input, GPIB, LAN, USB, and LXI compliance. This compact 1U package delivers high power density for high-voltage applications and is designed for automated test equipment (ATE) and laboratory environments. The power supply includes power factor correction (0.99 typical) and can be paralleled with up to 4 additional units for higher current output.

Key Features

• 0-600V, 0-2.6A output with 1560W power capacity
• Universal AC input (100/200 VAC, 21A/11A)
• Power factor correction (0.99 typical)
• Over-voltage, current, and temperature protection
• Constant voltage and constant current modes
• Independent remote on/off and remote enable/disable
• 15 store/recall states for settings memory
• Rotary encoders for voltage and current adjustment
• GPIB, LAN, and USB interfaces included
• Built-in web server for remote monitoring and control
• Fully compliant to LXI Class C
• Compact 1U package with space-saving design

Applications

• Automated test equipment (ATE) requiring high-voltage programmable DC power
• Laboratory testing and development applications
• High-voltage power in compact form factors
• Systems requiring remote control and monitoring capabilities
• Multi-unit configurations for increased current delivery
