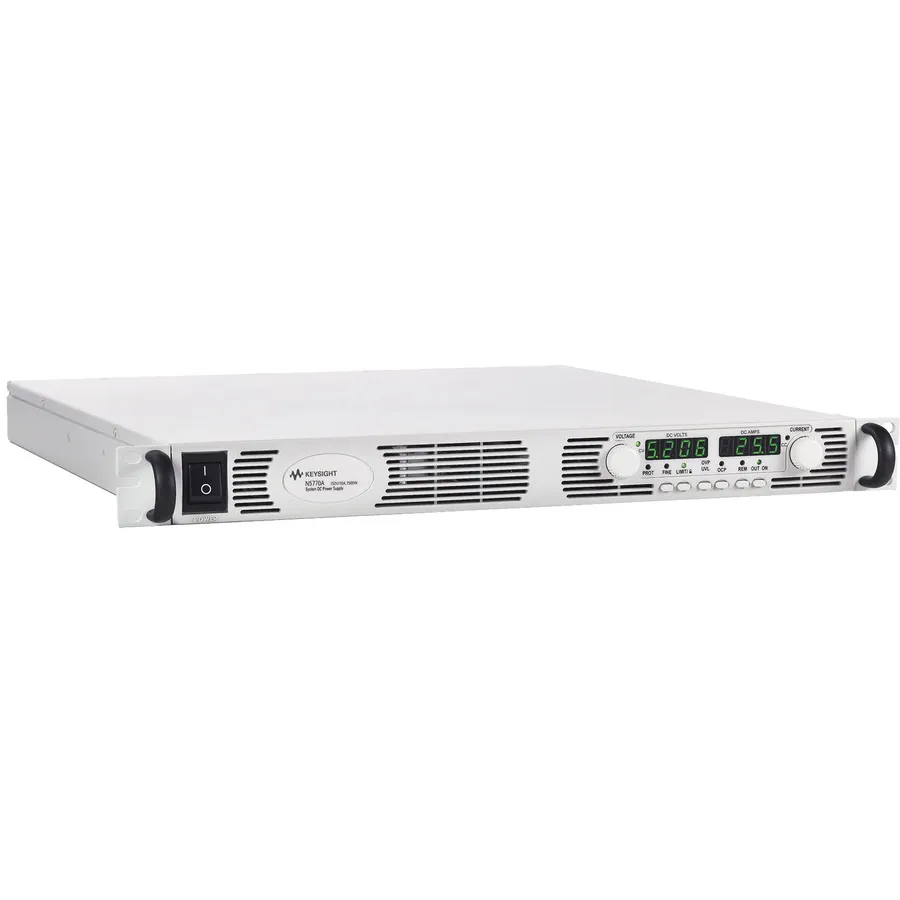

Keysight N5770A/861 DC Power Supply
Request a quote
Keysight N5770A/861 is a 1500W single-output DC power supply with 0–150V/0–10A range, universal AC input, and full LXI Class C compliance.
Product details
| Model | N5770A/861 |
| Manufacturer | Keysight |
| Category | Single Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Keysight N5770A/861 is a single-output DC power supply providing 0–150V and 0–10A outputs totaling 1500W in a compact 1U package. With universal AC input (100/200 VAC compatible), power factor correction (0.99 typical), and full LXI Class C compliance, this supply is engineered for automated test and measurement applications requiring programmable control and remote monitoring.
Key Features
- Single output: 0–150V, 0–10A (1500W)
- Compact 1U high-density package
- Universal AC input with power factor correction (0.99 typical)
- Over-voltage, current, and temperature protection
- Constant voltage and constant current modes
- Independent remote on/off and remote enable/disable
- 15 programmable store/recall states
- Rotary encoders for voltage and current adjustment
- GPIB, LAN, and USB interfaces included
- Built-in web server for remote monitoring and control
- LXI Class C fully compliant
- Parallel operation: up to 4 units for higher power
Applications
- Automated test equipment (ATE)
- Production testing and burn-in
- Laboratory testing and characterization
- Device validation and compliance testing
Specifications
| Voltage Range Selector | 100-199 |
| Output Voltage | 150 V |
| Current Range Selector | 10-19.9 |
| Output Current | 10 A |
| Power Range Selector | 1,000-2,499 |
| Power Rating | 1.5 kW |
| Mounting Type | Rack Mount |
| Input Voltage | 85-265 VAC |
| Series | N5700 Series |
| Display | Digital |
| Interface | GPIB,USB,LAN |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 1U |
| Special Features | Unterminated Power Cord |
